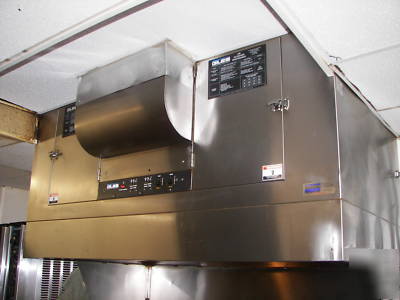

Giles ventless hood, air system
The Ventless Hood consists of an Air Filtration System. The Air
Filtration System operates in three steps:
(1) Baffle Filter traps large grease particles;
(2) Prefilters, not shown, allows for additional grease laden
vapors to be removed from the air more efficiently;
(3) Electronic Air Cleaners consist of an ionizer which charges
particles of grease in the air allowing them to be collected
(4) Charcoal Filters further entrap any particles which may have
escaped the Electronic Air Cleaners, and the charcoal filters
Printed in U.S.A. 10/98 Form 66034
3. Specify extra Electronic Air
Cleaners (PN 20520)* & (pn 20521) for back up
4. Specify extra charcoal filter (PN 32056) for replacement,
5. Specify extra prefilters (pn 46762), requires 2 filters.*
7. For export consult factory.
(139.7 x 205.74 x 127 = 3.65 cu meters)
