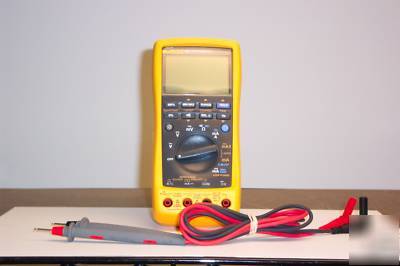

Fluke 789 processmeter calibrated & certified msrp 795
Unit is *Great Conditon* with test leads
$$$$$$$$$ Batteries and Fuses COST $$$$$$$$$
- You will receive a Calibration Certificate and Calibration Sticker.
- Calibration services are $89.99 USD A FREE Service to you
The Fluke 787 was the first tool to combine a DMM and a loop calibrator to give process technicians double the power in one tool. Now it s even better, the range is extended with the new Fluke 789 the ultimate loop calibration multimeter. The Fluke 789 has a 24-Volt loop supply reducing the need for taking a separate power supply when doing offline transmitter testing. And with its built-in, selectable 250-Ohm Hart resistor, it also eliminates the need to carry a separate resistor with you. Now process technicians can do a lot more while carrying a lot less.
* Enhanced backlight with 2 brightness settings
* 1200 Ohm drive capability on mA source
* HART mode setting with loop power and a built-in 250 ohm resistor
* 0% and 100 % buttons to toggle between 4 and 20 mA sourcing for a quick span check
* Externally accessible fuses for easy replacement
* Infrared-port to process data in FlukeView Forms (V2.1) software
Fluke 789 features that are also included in the Fluke 787
* Precision 1000 V, 440 mA True-RMS digital Multimeter
* Frequency measurement to 20 kHz
* Min/Max/Average/Hold/Relative modes
* Diode Test and Continuity Beeper
* Simultaneous mA and % of scale readout
* 20 mA DC current source / loop calibrator / simulator
* Manual Step (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp
Meets 1000 Volt EN61010-1 CAT III standards and 600 Volt EN61010-1 CAT IV standards.
24 V Compliance or 1200 @ 20 mA
2.0 V shows diode voltage drop
Humidity (Without Condensation)
Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92
50 x 100 x 203 mm (1.25" H x 3.41"W x 7.35" L)
140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
