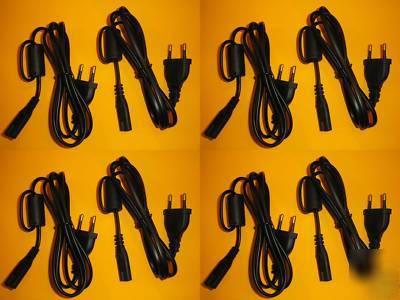

Euro plug 2-pin 2.5A iec C7 fig.8 shotgun cable 1.3M X8
also available for 69p each for quantites over >10+ (postage TBC)
please ask me to quote a discounted postage charge
Euro Europlug 2-pin ungrounded IEC C7 2.5A fig.8 cable 1.3m x8
0.75mm cable (for up to 10A), but cable rated at 2.5A by the Europlug
Europlugs are only designed for low-power (less than 2.5 A) Class II (double-insulated) devices that operate at normal room temperature and do not require a protective-earth connection.
The pins of the Europlug are 19 mm long. They consist of a 9 mm long conductive tip of 4 mm diameter with a rounded ending, followed by a 10 mm long flexible insulated shaft of not more than 3.8 mm diameter. The two pins are not exactly parallel and converge slightly; their centres are 17.5 mm apart at the tip and 18.6 mm apart at the base. The elasticity of the converging pins provides sufficient contact force for the Europlug's current rating with a variety of socket-hole arrangements. The entire plug is 35.3 mm wide and 13.7 mm high, and must not exceed these dimensions within 18 mm behind its front plane (this allows for the recesses on many European socket types). The left and right side of the plug are formed by surfaces that are at 45 relative to the horizontal plane.
