Duropower 6000W/220A diesel welder/generator

Your PREMIER engine dealer for anything that needs POWER!

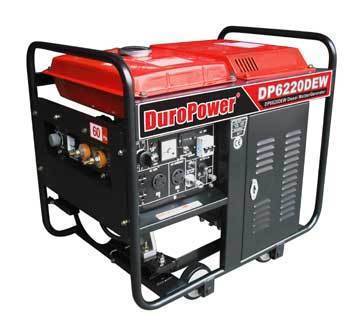

DP6220DEW 6000W/220A Diesel Welder/Generator
6000W/220A Deluxe Elec. Start Diesel Welder/Generator
The DP6220DEW Features & Specifications
1. 9.0HP Air Cooled Diesel Engine
DP418DE 9.0HP, 418cc, Single Cylinder, Air Cooled, Direct Injection, 4 Stroke, Diesel Engine With Low Oil Shutoff & E-Start & EZ pull start back up.
2. Deluxe Heavy Duty Rigid Steel Frame
Deluxe Heavy Duty Rigid Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.
Long 6-Hour Run Time At Full Rated Output.
Long 8-Hour Run Time At 50% Rated Output.
4. 6000W Surge Output: Automatic Voltage Regulator keep clean Power output.
Max. AC Output: 5500W at 120/240V
Rated AC Output: 5000W at 120/240V three phase
All Steel 4.0 Gallon Fuel Tank with EZ-Read Gauge
Super Quiet Muffler With USDA-Qualified Spark Arrestor Reduces Engine Noise.
Full Power Panel with Engine Shutoff Switch, Digital Voltmeter & hour meter, Voltage Selector, Oil Alert Lamp, AC Circuit Breaker, AC & DC Circuit Protector & ATS receptacle & Power Outlets.
8. 3 Pole Single Phase 120V AC & 1 Pole 120/240V AC & 1 Pole 12V DC Output Generator
Fully Protected 2 Pole 120V/ 60Hz Max Current 20A AC Output (NEMA 5-20R)
1 Pole 120V/ 60Hz Max Current 30A AC Output (NEMA L5-30R)
1 Pole 208V Max Current 30A AC Output (NEMA L14-30R)
1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.
9. Portability Deluxe Wheels / Handle Bar Kit Included
Four 4 Deluxe Strong Wheels & Handle Bar, Instructions Included.
10. Easy Start & Pull Start Back up & Run A Variety Of Electric Appliances & Tools
Great for: Home or Commercial Emergency Power & Welder Job Operation.
11. One Year/1000 Hours Warranty For Residential.
Three Months/1000 Hours Warranty For Commercial
Regularly should take 6-7 working days to east coast, 3-4 days for west coast for delivery.
If there is any visible damage from the outside of the box, the receiver should indicate so on the waybill when signing for the package.
* NO RETURNS are Accepted for this Listing
* You will be fully Covered by the Warranty Policy (see below)
DuroPower Inc. is a factory outlet company in California.
DuroPower - a powerful brand name you can trust - carries a wide, high quality, power product line.
Add up the wattage of tools, appliances and motors you want to run at the same time. Then select the generator with the RUNNING wattage rating to match or exceed the total load. Keep in mind that tools and appliances with electric motors or heating elements require additional tool/appliance SURGE wattage at startup. Wattage noted below are approximates only; please refer to tool or appliance itself for specific wattage required Amps x Volts = Watts
Running Wattage Wattage Required
Household/RV Required @ Startup
Dishwasher (Cool Dry) 700 1400
Electric Clothes Dryer 5750 1800
Furnace Fan (Gas or Fuel Oil):
Motor home 5th Wheel and Camp Trailer Top or RV Air Conditioners:
Capacitor Start Capacitor Run:
Electric Fence, 25 miles 2500 0
Portable Heater (Kerosene, Diesel fuel):
60 Amp w/250Amp Boost 1500/5750 0
100 Amp w/300 Amp Boost 2400/7800 0
* All ratings are estimates. Contact the manufacturer of your item for exact requirements.
* If your item has a plate on it showing Amps and Volts, multiply Amps x Volts and that equals your Wattage: Amps x Volt = Watts
* If the power requirement you need is not listed, please call us at 1-(***)-433-9468, we ll do our best to help determine your wattage needs.
All DuroPower engine have EPA Certificate from 2002, some of them have CARB (California only) certificate from 2004, please get details in the description.
We have 10 models of 2 stoke gas engine from 26cc to 100cc.
We have 10 models of 4 stoke gas engine from 31cc to 420cc.
We have 2 models each of single cylinder & three cylinder & 4 cylinder diesel engines.
We have service the market for over 5 years.
3. All DP Engine Have Cast Iron Sleeve.
4. All DuroPower Generators would match MTL & ETL Standards.
5. Where you could get parts & technical support for DuroPower products?
For your convenience, we would arrange our service dealer in your location to service for you, but you still need contact with our service Department first.
Three Month/1000 hours Warranty for Commercial end user.
We could provide extension warranty for DuroPower generator.
For one year warranty, same cost as on sale price.
For two year warranty, 33% more than on sale price.
For three year warranty, 66% more than on sale price.
For five year warranty, 99% more than on sale price.
Fax 626- 859-4431 or email to ****@duropower.com or ****@dexinintl.com
8. All Elec. Start Generator would come with battery & recoil pull start back up.
9. Digital Inverter Generator & AVR generator.
Most regular generator on the market would be with AVR (automatic voltage regulator) to adjust voltage in +/- 5% base on the load of generator.
All DuroPower Generator have AVR except Digital inverter generator (DP1000i/DP1250i/DP2000i/DP3000Ei) & PMM diesel generator (DP6500ED/EDS, DP7500ED/EDS).
Digital inverter generator would be a high tech generator, we use a digital inverter change AC from alternator to DC then digital control the RPM of the engine base on the load of generator then change from DC to AC again to provide a true sine super clean power ( +/-3%).
Digital inverter generator have three special things than regular generator:
1) Super clean power Voltage: +/-3%, THD < 3%.
2) Super quiet operation : <58dB.
3) Super fuel saving: around 50%.
(Base on regular generator with same wattage)
PMM alternator would be a special material called Permanent Magnetic Material (PMM).
This kind of alternator could provide +/- 3% vibration of voltage directly & keep long time no change.
10. Propane Generator / Diesel Generator / Gas Powered generator
Base on the same Horse Power of engine, propane powered could Provide 15% less power than gas powered,
diesel could provide 15% more power than gas powered engine.
11. How long could a propane generator run with a 20 Lbs propane tank.
DuroPower Propane generator line - DP2000LPG/ DP3000LPG/DP3000ELP/DP3800ELP/DP4000ELP/DP5000ELP (Elec. Start)
DP6000LPG/DP6000ELP could be easy connect with regular BBQ propane tank (5/10/20/40Lbs ), the kit comes with the generator no need for any extra tool & part.
A full 20 Lbs propane tank could run:
DP3000LPG/ELP: 16 Hours at half load/12 hours@ full load.
DP6000LPG/ELP: 12 Hours at half load/ 8 hours@ full load.
Duropower LP generator could keep continue running for over 300 hours with enough propane.
Regularly should take 6-7 working days to east coast, 3-4 days for west coast for delivery.
13. How quiet are the generators?
Regular generator noisy level should be 68-75 dB
Quite generator noisy level should be 60-67 dB
Super quite generator noisy level should be 55-60 dB
Digital inverter generator would be 55-60 dB, sound like a Refreeze start up.
Silent generator would have 60-67 dB, sound like a running car park close you.
Regular gas & Diesel & propane generator have 68-75 dB, Sound like stand under a traffic signal light at a cross street.
14. How to read the wattage of generator?
Surge Wattage would be helpful for your appliances startup together.
Regularly the generator could keep this wattage in 5 to 10 minute.
Max Wattage would be important for power more appliances.
Generator would keep this wattage in half one hour at least.
Rated wattage would be good for long term running wattage.
Regularly, the generator could keep the output over 6 hours.
For example: DP9000ER would have 9000w surge wattage;
Please take pictures and notes of generator defect(s) and email them to ****@duropower.com. This will help us expedite your warranty claim.
Damage to voltage regulators caused by failure to ground, short or overloading a generator product is not covered under the warranty.
Batteries supplied with any generator product should be considered a bonus item and not covered under warranty. Batteries can be damaged by shock, shorting terminals, heat, acid spillage and a number of other factors that can not be controlled after it has left our facility. Spillage of acid as corrosion or damage caused by battery acid is not covered by warranty.
We disclaim any responsibility for the loss of time or use for product, transportation, commercial loss, or any other incidental or consequential damage. Any implied warranties are limited to the duration of the written limited warranty.
