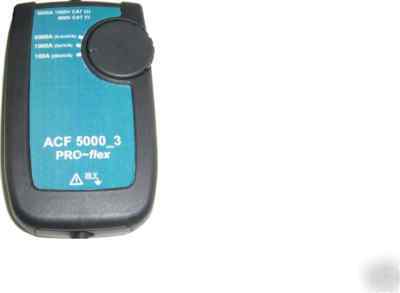

Acf 5000_3/24 ac flexi current probe fluke 1750 & rpm

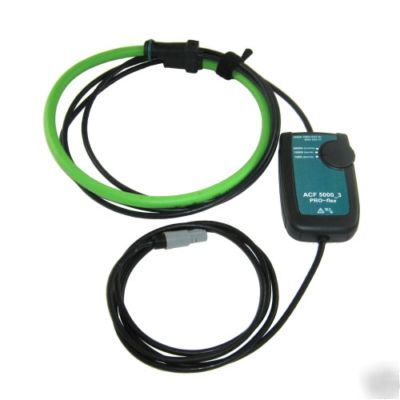

The new PRO~flex ACF5000_3/24 is an AC current probe utilising the Rogowski principle. It can be used to measure currents up to 5000 Amps from very low frequencies to 20kHz. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors. The probe provides for three user selectable input current ranges of 100, 1000, or 5000 Amperes.
* Ideal for large and hard to reach conductors
* Degree of protection (Probe) IP65
* Selectable current ranges (rotary switch of 100/1000/5000A)
* Output Sensitivity (@60Hz): 20mV/ 2mV/ 0.4mV per A
* 1% accuracy of reading (45-65 Hz)
* Used with Fluke 1750 and Fluke RPM
* note: Use of probe on uninsulated conductors is limited to 1000 V AC or DC and frequencies below 1 kHz
* Seller offers local pick- up during regular work week hours; contact PQStore for arrangements.
