Particle measuring cls-1000 corrosive liquid sampler

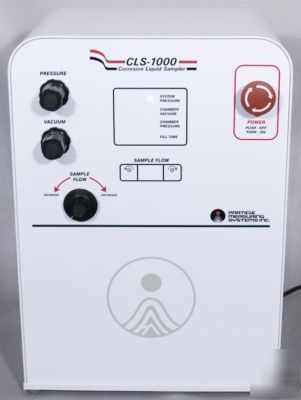

Particle Measuring Systems CLS-1000 Corrosive Liquid Sampler / Particle Counter
Specifications are from Particle Measuring Systems and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The unit powers up but we do not have the expertise to test it after that. It was Intel surplus and seems to have been used with a blue liquid which I believe is a polishing agent that Intel uses called Semi-Sperse W2000 (DI Water and Proprietary Metal Oxide).
List Price is: $57,100.00 NEW from Particle Measuring Systems
Link to the Datasheet: Particle Measuring Systems CLS-1000 Corrosive Liquid Sampler Datasheet
The CLS-1000 chemical particle counter is a compression sampler combined with a Liquistat volumetric particle counter for measuring liquid chemicals up to 90 degrees C. Built-in safety features such as leak detection and purge air make it ideal for integration into a wet bench for use with dangerous solvents and acids. Designed for versatility and reliability, the system can be located on a cart for increased mobility when sampling from process to process. The compression sampler eliminates erratic data problems due to bubbles in effervescent or hot chemicals. The CLS-1000 chemical particle counter is fully compliant with the new SEMI C1 standard for particle measurement of process chemicals.
* Quick sample cycle allows for faster detection of anomalies
* Large sample volume allows for tighter process control and less data variability
* 0.1 m sensitivity for ultra-pure processing
* 50 mL/minute flow rate and 100% view volume mean quicker process qualification
* Longer wet bench maintenance intervals based on data collected in real-time
* User-selectable measured volume conserves expensive chemicals
* Compression sampling allows instrument to measure most chemicals, including effervescent chemicals, up to 90 C
* Easily portable for use throughout factory
* Internal leak detection and containment
* Corrosive resistant polypropylene exterior
* Purge gas forces dangerous vapors out of enclosure to prevent internal corrosion
* Wet process chemical particle monitoring
* Chemical QA particle measurements
* General chemical product particle monitoring
Channels: 0.10 - 0.14 user-selectable, 0.15, 0.20, 0.30, > or = to 0.50
Flow Rate: 50 mL/minute 10%
Overflow Volume: 15 or 55 mL, user-selectable
Maximum Concentration*: 5000 counts/mL
Sample Temperature: 10 - 90 C
Liquistat Zero Count: < 100 counts/liter (when sampling inside CLS-1000)
Exterior Surface: Polypropylene with laser-etched and chemical-resistant epoxy graphics
Wetted Surface Materials: Kel-F, PFA, sapphire, and Kalrez 4079
Dimensions: 18" H x 13" W x 10" D (45 cm x 33 cm x 24 cm)
Power: 85 - 264 VAC (50-60 Hz)
Communications: Ethernet, 4 - 20 mA (three outputs: two particle channels, one instrument status), RS-232 (setup and diagnostics only, no data)
Status Indicators: LEDs indicating operating pressures and operational status. Front panel graphic flow rate indicator.
Calibration: Materials used are traceable to USA NIST and/or JIS
Operating and Purge Gas: Nitrogen or Clean Dry Air (CDA), 80 - 150 psi
Sample Compression Pressure: 0 - 60 psi @ 90 C
Software: Facility Net or SamplerSight, available separately from the factory
Sampling: Controlled via external software, sampling can be started by an external trigger signal.
*: Greater than 90% accuracy (less than 10% coincidence loss) at maximum recommended concentration.
* Picture 3 - Right Side View, Cover Removed
* Picture 4 - Left Side View, Cover Removed
* Picture 5 - Controls & Indicators #1
* Picture 6 - Controls & Indicators #2
* Picture 7 - Facility Connections #1
* Picture 8 - Facility Connections #2
* Picture 9 - Serial Number Tag
