Okuma & howa 2SP20HG, 2 spndl, 2 trt gantry cnc lathe

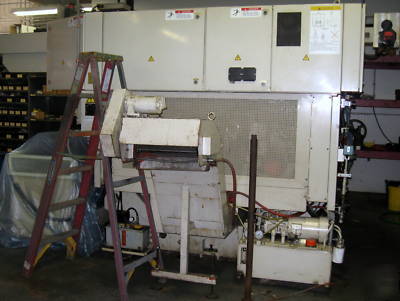

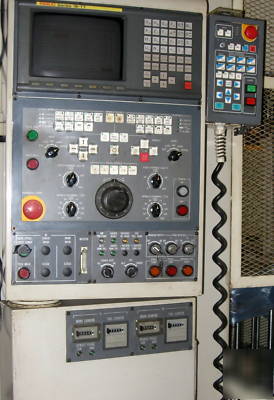

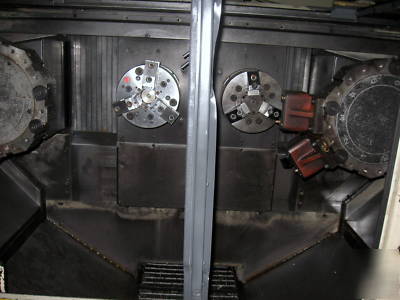

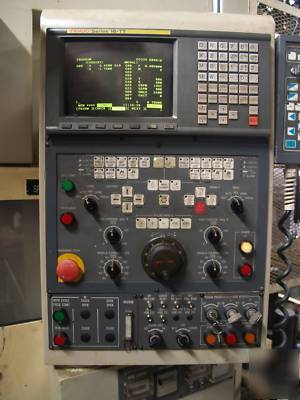

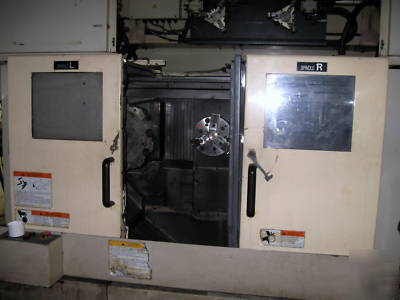

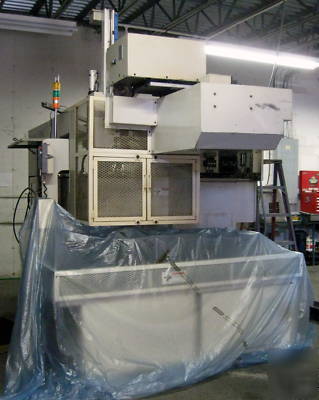

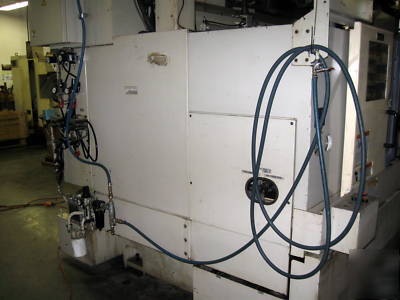

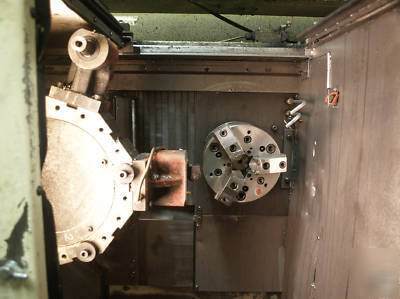

USED 1997 OKUMA & HOWA, 2SP-20HG, 2 SPINDLE, 2 TURRET CNC LATHE WITH ROBOTIC GANTRY LOADER, PALLET STACKER, CHIP CONVEYOR, FANUC 18TT CONTROL, (2) 8 CHUCKS, TOOLHOLDERS, COOLANT TANK.
This is a really easy machine to both program and operate, it's in great condition, and we hate to see it go. However, we have completed the project for which it was purchased, so go it must. This machine is in use in our shop, and can be viewed and tested under power. It has been completely cleaned and awaits its new owner, sparkling clean and ready to go. We will consider reasonable offers! MORE PICTURES AVAILABLE BY REQUEST!
DISTANCE BETWEEN SPINDLE CENTERLINES..................13.77"
MAXIMUM CUTTING DIAMETER..............................8.27"
MAXIMUM CUTTING LENGTH................................7.87"
SPINDLE CENTER HEIGHT FROM FLOOR......................46.46"
SPINDLE NOSE..........................................A2-6
SPINDLE BORE DIAMETER.................................2.44"
SPEED RANGE...........................................32-3200 RPM
SPEED RANGE SHIFT.....................................STEPLESS
SPINDLE MOTOR.........................................20 HP
TURRETS (2)...........................................10 EACH
STANDARD TOOL SIZE (SQUARE / ROUND)...................1" + 1 3/4"
TRAVELS X AXIS........................................6.88"
Z AXIS........................................7.87"
RAPID TRAVERSE RATES..................................944 IPM X & Z
FLOOR SPACE REQUIREMENTS..............................6.9 FEET WIDE
MACHINE WEIGHT........................................11,660 LBS
COOLANT CAPACITY......................................68 GALLONS

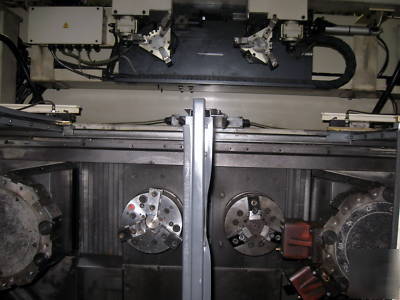

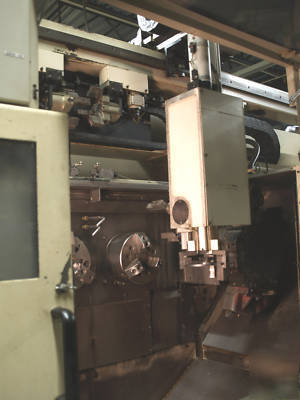

Robotic Gantry Load/Unload with Turn-Over Station

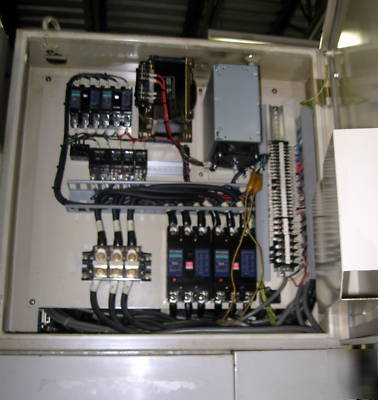

All Available Manuals, electrical drawings & ladder diagram
I think I have all the pertinent details in this listing, so please double check for the info you want before firing off an email. However, please do email or call Drew at (***)-447-2425 or (***)-873-1772 with any questions that the listing does not answer. We can schedule an inspection almost any time, including weekends by appointment.
