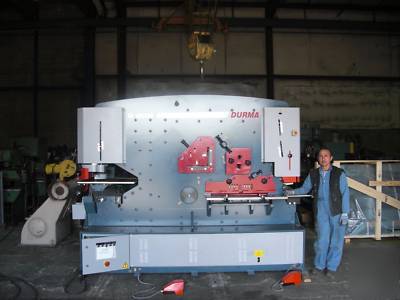

New durma 182TON ironworker
Punching Pressure ................................................. 182 Tons
Punching Capacity (Diameter x Thickness).......... 2 hole in 1
Throat Depth............................................................ 20"
Stroke Length (Maximum)....................................... 3.5"
Cycles per Minute (3/4" Stroke).............................. 31
Working Height up to Die....................................... 44"
Flat Bar (Max. Thickness)....................................... 3/4"
Flat Bar (Max. Width)............................................... 30"
Angle Flange Trim (45 Max.)................................. 5"
Working Height........................................................ 39"
Tonnage................................................................... 330 Tons
At 90 Shearing......................................................... 8" x 8" x 3/4"
At 45 Miter Shearing............................................... 2.75" x 2.75" x 1/4"
Working Height........................................................ 53"
Material Thickness................................................... 5/8"
Rectangular Notcher (Width).................................. 2.25"
Rectangular Notcher (Depth).................................. 4 3/8"
Working Height........................................................ 35.5"
Motor Power............................................................. 20 HP
Oil Capacity.............................................................. 39.5 Gallon
Approximate Net Weight......................................... 16,535 Lbs.
Approximate Machine Dimensions (L x W x H).... 128" x 52" x 90"
This is a very Nice Heavy Duty Machine,
