Lucent 1319-type 2.5 gb/s high-speed lightwave receiver

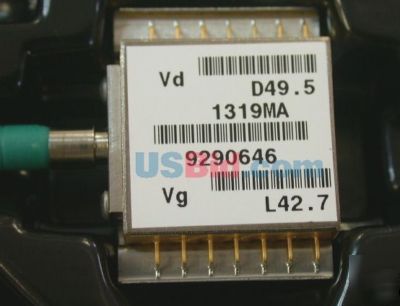

LUCENT 1319-Type 2.5 Gb/s High-Speed Lightwave Receiver
Device comes terminated with MU Singlemode connector
The 1319-Type high-speed fiber-optic receiver consists
of a wideband linear preamp followed by a limiting
amplifier buffer stage. It is designed for use in singlemode,
high-speed applications at the SONET OC-48
and the ITU-T synchronous digital hierarchy (SDH)
STM-16 data rate of 2488.32 Mbits/s. The receiver is an APD photodetector.
At 2.5 Gbits/s, the typical room temperature receiver
sensitivity measured at 3 x 10 11 bit-error rate is
34 dBm for the APD receiver and 25 dBm for the PIN
version of the receiver. The operating case temperature
range for the APD receiver is 0 C to 60 C
High data rate capability: 2.5 Gbits/s APD photodetector
Fully operational through the 1.3 m to 1.55 m wavelength range
Typical sensitivity: 34 dBm with APD
Single-mode fiber pigtail with MU optical connector
High-performance GaAs preamplifier
Operating case temperature range: 0 C to 65 C with APD
* High-speed networks up to 2.5 Gbits/s
* SONET OC-48 and SDH STM-16 telecommunications applications
* Extended reach datacomm and telecomm applications
NEW Device returned to Lucent for repair, but was found to be fine

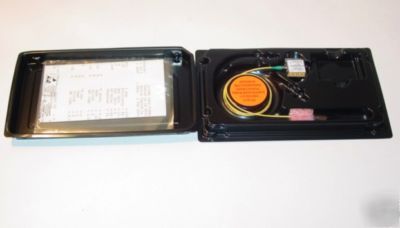

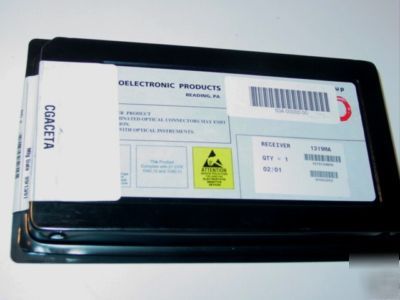

DEVICE IN ORIGINAL PACKAGING - INCLUDES TESTING SPECIFICATIONS
