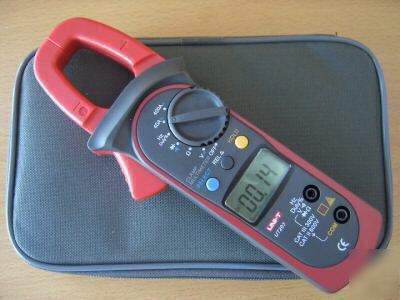

Digital ac/dc clamp multimeter-automotive battery meter
"Digital AC / DC Clamp Multimeter "
DC/AC Clamp-on current (10mA to 400A )/ 1mV to 600V AC & DC Voltage / Resistance / Frequency Measurements
Industrial, Lab, DIY, Automotive Battery DC Applications
LIGHT WEIGHT , COMPACT & HANDY DESIGN !!!
. LCD, 3 3/4 Digit Display, Max display 3,999;
. Complies with IEC1010-1 Standard;
. DC Current Range : 10mA to 400A;
. AC Current Range : 10mA to 400A;
. AC Voltage Range : 1mV to 600V;
. DC Voltage Range : 0.1mV to 600V;
. Frequency Range : 0.001Hz to 10MHz;
. Continuty test, Diode & Resistance measurements;
. Duty Cycle Range : 0.1 to 99.9%;
. Overload Protection on all ranges;
. Overflow display & Polarity Sign for DC measurements;
. Low battery display, auto power off saving;
- Accuracy : +/- (2% +5 digits);
- Overload Protection : Max 400A AC /DC;
- Accuracy : +/- (2.5% + 5 to 8 Digits );
- Range : 4 / 40 / 400 / 600V;
- Resolution : 0.01V / 10mV / 100mV / 1V;
- Overload Protection : 600V DC/AC;
- Range : 0.4 / 4 / 40 / 400 / 600V;
- Resolution : 0.1mV / 1mV / 10mV / 100mV / 1V;
- Range : 400 / 4K / 40K / 400K / 4M / 40M ohms;
- Resolution : 0.1 / 1 / 10 / 100 / 1k / 10K ohms ;
- Overload Protection : 600 Vp;
- Range : 10 / 100 / 1K / 10K / 100K / 1M / 10MHz for reference ;
- Resolution : 0.001 / 0.01 / 0.1 / 1 / 10 / 100 /1KHz ;
. Continuty test with buzzer sound while <= 50 Ohm;
. Duty % : 0.1 to 99.9% ( for reference );
. Selectable "Auto-Power off" function;
. Dimension : 76 x 208 X 30mm;
. Accessories : Carrying Case, test leads, user manual
If the item damaged upon received, please inform me immediately by e-mail within 5 days. After the investigation, we decide to the replacement.
Don t hesitate to Ask if any inquiry.
