New 24" x 60" mattison surface grinder, 1977

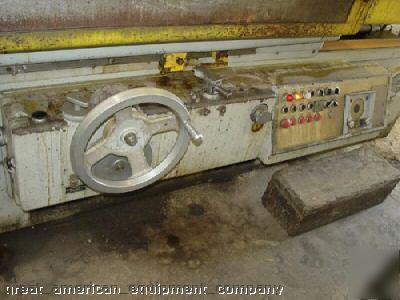

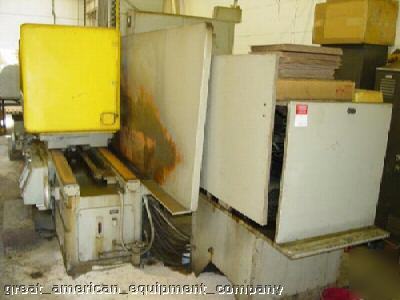

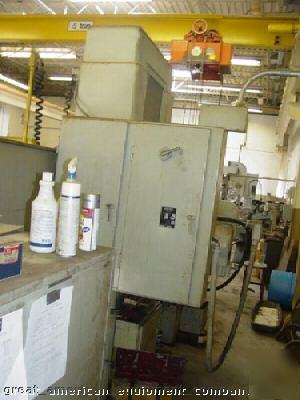

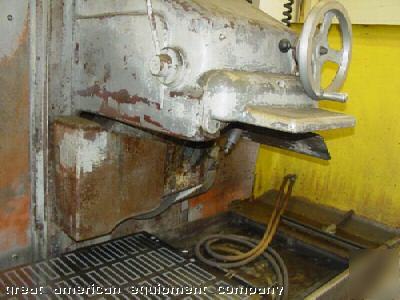

Please see info below and photos on a very nice Mattison Heavy Duty 'Die Block' Surface Grinder. This is the Newer Style Squared Off Box Type Column. This machine was rebuilt 3 years ago and the ways on it look immaculate. . It is under power in Cincinnati, OH and is available to show to you. This machine will make someone an excellent machine . I do have the ability to load this machine on your. I can shop and get you a freight rate if you want me to. Please call

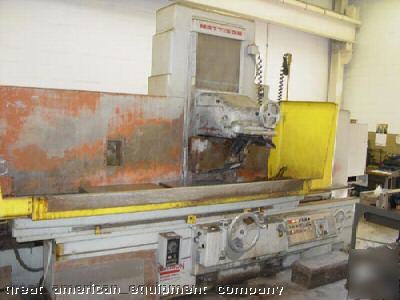

24" x 60" MATTISON HORIZONTAL SPINDLE RECIPROCATING SURFACE GRINDER

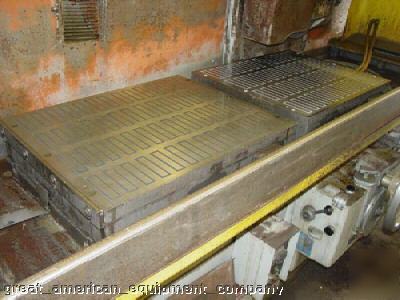

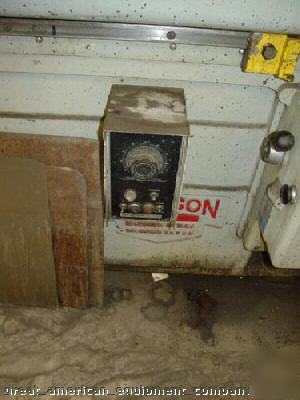

EQUIPPED WITH: This is a Heavy Duty 'Die Block' Style Surface Grinder with the 'Newer' Style Squared Off Box Type Column, Auto Recip & Crossfeed, Power Operated Raising & Lowering of Wheel Head, (2) 24" x 30" Hitachi Electro Magnetic Chucks, Above the Wheel Dresser, Travatrol Electronic Cross Feed, Trabon Automatic Lubrication System, Coolant System w/ Barnes Magnetic Seperator.
Max Table Working Surface............................ 24" x 60"
Magnetic Chuck Working Surface....................... 24" x 60"
Longitudinal Travel (X-Axis)......................... 60"
Cross Travel (Z-Axis)................................ 24"
Vertical Travel (Y-Axis)............................. 24"
Max Height Under New Wheel........................... 25"
Max Height Spindle Center to Table................... 35"
Table Longitudinal Feeds Range (Variable)............ 10 - 125 FPM
Grinding Wheel Diameter.............................. 20"
Grinding Wheel Width................................. 3"
Grinding Wheel Hole Diameter......................... 18"
Grinding Wheel Motor................................. 30 HP
Electrics............................................ 230/3/60
Approximate Machine Dimensions....................... 152" x 87"
Approximate Machine Height........................... 110"
Approximate Machine Weight........................... 24,300 LBS
CONDITION: Machine Appears to be in Excellent Condition!
