Lindberg box atmosphere heat treating furnace

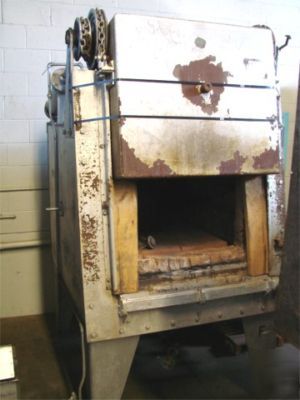

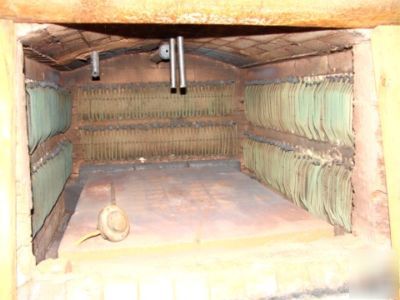

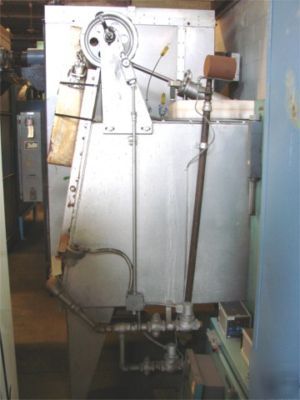

Used Lindberg box atmosphere controlled type heat treating furnace with air operated vertical rise door and refractory lined heating chamber. Furnace has atmosphere tight construction and includes burn-off and flame curtain under doorway to prevent oxygen from entering the work area while door in in open position. Ni-Chrome heating elements are mounted on side & rear walls and under the refractory hearth. Will require installation of loose controls for temperature and atmosphere. Electrical drawings included. Item #2011
Manufacturer; Lindberg Model; RO-243618-A Serial Number; 12198
Overall Dimensions; 64"W x 97"H x 76"L
Maximum Operating Temperature; 1850F
Power Requirements; Heating Elements; 40 KW, 230 Volt, 3 Phase .

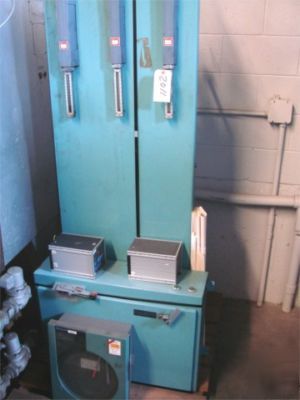

Controls; Marathon Monitors program controls for temperature and carbon control, Honeywell Truline recorder, Honeywell hi-limit safety, contactor heating element control. These controls are being supplied loose for field installation. No enclosed panel is included. There is a separate free standing atmosphere control panel which is equipped with Waukee flowmeters and electric solenoids.
Weight; Approx 5,000 lbs. Will require open trailer. We will load.
