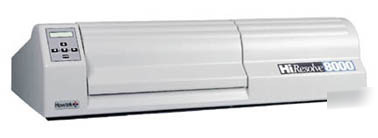

Howtek film scanner
450-1,600 RPM 100 MB scan in less than 4 minutes Scanning Area 11.5" x 12" at 8000 dpi Media Carrier 1 standard sized removable drum Technology three matched PMTs (red, green, blue) Dynamic Range 0-4.2 optical density Color Output 48 bit color; 16 bits per channel Field Stops 17 apertures for transparencies 17 apertures for reflectives Automatic or Manual selection Calibration patented Auto Calibration (calibration strip included on drum) Focus patented Automatic and Manual Focus Light Source user removable Dual Tungsten lamps Interface standard SCSI 2 Dimensions (WxHxD) 10.3" x 38" x 20.3" 25.8 x 95 x 50.75 cm Weight 103 lbs; 46.7 kg
Trident Photo Edition software Trident Separator Edition software
off-line drum mounting station
The Howtek HiResolveTM line of scanners introduces a new benchmark in quality, versatility and time-saving features. Using the latest and best technology avail- able, Howtek HiResolve drum scanners focus light through an aperture and are capable of sampling an image one pixel at a time thus increasing your enlarge- ment capabilities. Additionally the highest optical resolution available is not lim- ited by the size of your original image. The combination of a strong focused light source and a highly sensitive PMT sensor ensures a large dynamic range to fully resolve fine line detail in high contrast areas and provide outstanding detail in shadow areas with less interference, or flare from adjacent pixels. Overall, the Howtek HiResolve scanners reduce post-scan work and overall job management costs to produce a virtual scan to print environment and increased profits.
The Howtek HiResolve 8000 establishes a new industry standard for true optical resolution with 8,000 dpi across the entire drum area of 11.5" x 12" and scanning speeds of up to 1600 RPMs. And with 17 different apertures for both transmissive and reflective scanning and true micro-stepping sampling, you are nearly guaranteed to scan at a native resolution every time, without interpolation! The HiResolve 8000 offers scanning speeds up to 1,600 RPMs to scan twice as fast as most of it competitors making it the best productivity and quality scanner in its class. Featuring the latest technology available and highly sensitive PMTs, the HiResolve 8000 captures a full 48 bits of color and scans with an optical density range of 0-4.2 for great detail throughout your entire image.
If you are working in a quality-driven environment and need the highest produc- tivity available, the HiResolve 8000 is for you. From tradition prepress to fine art photo to large and grand format printing, the Howtek HiResolve 8000 has got you covered!
With industry leading optical resolution capabilities, the Howtek HiResolve 8000 matches maximum resolutions up to 32,000 dpi.
With speeds up to 1,600 rpms, the Howtek HiResolve 8000 beats all previous benchmarks for maximum productivity.
With more than 16 million shades of color to work with, you can make good images great and bad images good.
Gives you full flexibility to work with reflectives and transparencies without compromising your range of detail in shadow areas.
Included with the HiResolve 8000, this Common Workflow InterfaceTM connects directly to any of your Howtek scanners. Trident increases productivity by supporting saved 8, 12, or 16 bit TIFF images with cross platform support on Macintosh or Windows 95 and NT.
HiResolve 8000 introduces a new benchmark in quality, versatility and time saving features.
The Howtek HiResolve 8000 scanner offers up to 8,000 dpi of true, optical resolution; unprecedented in the industry today. And with 17 different apertures available, you are nearly guaranteed to scan at a native resolution every time, without interpolation. With scanning speeds up to 1,600 rpms and interactive batch processing through Trident software, increase your overall productivity by setting up and scanning images at the same time. Trident Photo Edition, bundled with all Howtek scanners, offers enhanced auto-intelligence features to interactively select highlight and shadow points and correct for color cast. This combination produces the 30-second scan by reducing the number of steps to complete a scan. Whatever your original image may be; from positives to negatives, small 35mm's to large transparencies, photographs or previously printed images, the Howtek HiResolve scanners offer a full dynamic range and 48 bit color space giving you more color to paint you image with. Working on Macintosh or Windows 95 and NT platforms, Howtek HiResolve and Trident have got you
