> 820 gal lee industries s/s tank with jacket, coils
820 gal lee industries s/s tank with jacket, coils

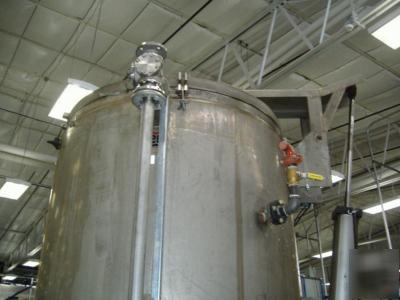

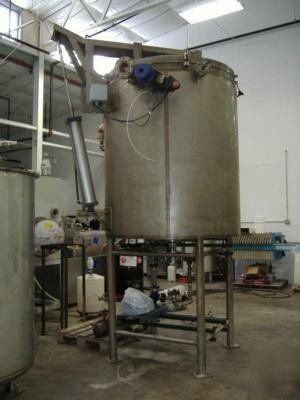

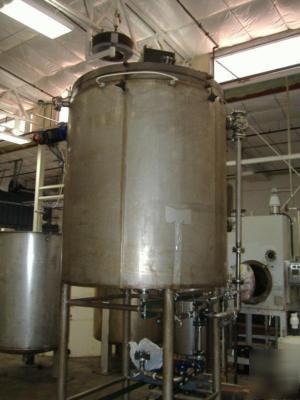

Lee Industries Model 5500 Stainless Steel Tank
* 823 Nominal Gallons (550 working),
* Style "U" Dished Bottom, Dished Top,
* Uniflow heat/cool coils in jacket on bottom and 36" up sides.
* Material of construction: 304 Stainless Steel.

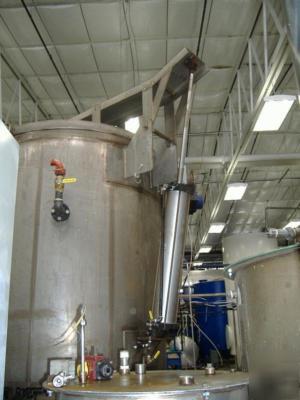

* Dished top lifts open with (1) 6" I.D. x 35" Stroke Pneumatic Cylinder Actuator
* 40 PSI Air required to open top
* (2) 1/2"-13 NC swing bolts w/ 3-lobe plastic knobs.
* 1-1/2" thick fiberglass insulation,
* Full Jacket height on straight side and bottom
* MAWP Jacket: 100 PSI @ 338 Deg. F.

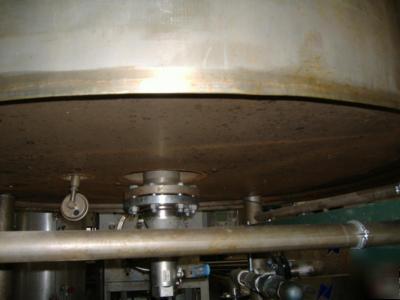

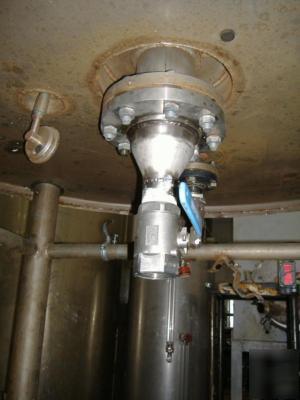

* Nozzle Schedule; (2) 3" tri-clamp sightglass, (1) 4" 150# RFSO Flange Outlet

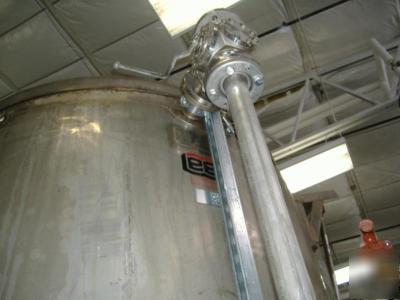

w/Vortex Breaker,(3) 1" 3000# Full CPLGS, (1) 4" 4" 150# RFSO Flange (Vapor Line),
(1) 2" 150# RFSO Flange Vapor Equalization, (1) 100 Ohm Probe Type Temperature Sensor, (1) 1-1/2" 3000# Half CPLG steam Inlet/Water Outlet, (1) 1-1/2" Sch. 40 Pipe Condensate Outlet/ Water Inlet, (2) 2" 105# RFSO Flange (Recirculation).

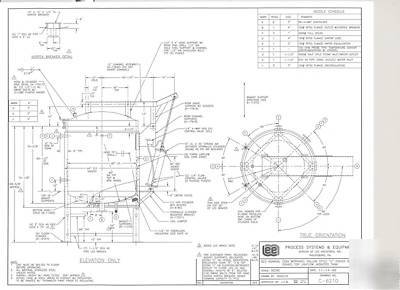

* Dimensions: 60" I.D., 60-1/2" Straight Side,
* 70-5/8" (Top rim to dish bottom), 64" O.D. on Sheathing,
* 126-5/8" floor to top rim of tank,
* overall height with dished head tilted open: 204" approx.,
* (4) 3" Sch. 40 pipe legs x 75" long, (4) Floor flanges (to fasten legs to the floor).

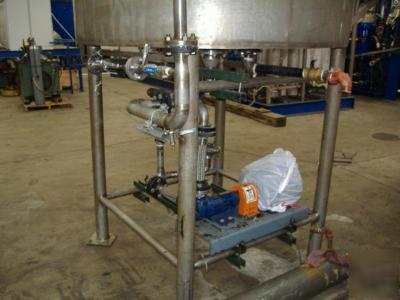

* Viking gear pump to circulate jacket fluid

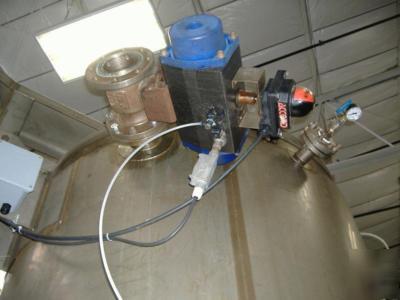

* 4" pneumatic actuated valve with position indicator to top fill valve
* 2" Threeway stainless steel valve
One hell of a tank with a lot of accessories for a great price,
