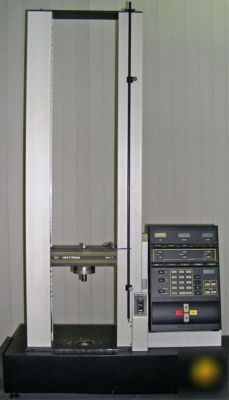

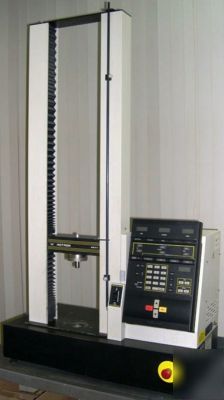

Serviced 1,125 lbf instron model 4411 tensile tester
Serviced 1,125 lbf Capacity Instron, Model 4411, Precision Two Ball Screw Tension and Compression Testing Machine
Tension Testing Opening (Less Tooling): 46"
Compression Testing Opening (Less Tooling): 46"
Distance Between Columns/Screws: 9.8"
Testing Speed (IPM): 0.02" to 20.0"
Crosshead Adjusting Speed (IPM): 24"
Approximate Overall Dimensions (W x D x H): 33" x 17" x 60"
Electrical Requirements (V, Hz, PH): 100/120/220/240, 47 to 63, 1
- Instron 5Kn (1125lb) Static T/C Load Cell.
Cleaned, Serviced & Certified FOB Warren, MI
