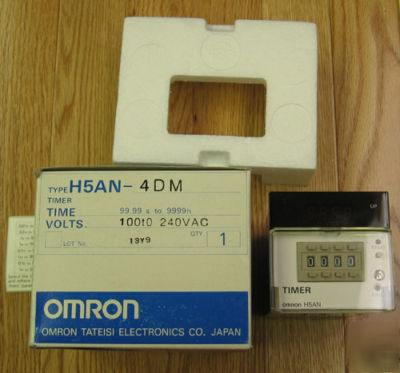

New omron H5AN-4DM-AC100-240 digital timer relay
DIN-sized (72 72 mm) Quartz Timer with Multiple Functions
http://www.ia.omron.com/product/item/h5an2003a/
80 mA 12 VDC +-10% (5% ripple max.)
Approx. 10VA (at 50Hz, 240 VAC)
Time ranges (Number of ranges)
0.01 s to 99.99 s, 0.1 s to 999.9 s, 1 s to 9999 s, 0.1 min to 999.9 min, 0.1 h to 999.9 h, 1 h to 9999 h , 1s to 99min59s , 1min to 99h59min
N (ON delay), F (ON delay), C (Repeat cycle), R (Repeat cycle), K (One shot output), P (Repeat cycle), Q (Repeat cycle)
Control output (Contact output)
Switching capacities (Resistive load): 3 A at 250 VAC/3 A at 24 VDC
Minimum applicable load: 10 mA at 5 VDC (failure level: P)
Control output (Solid state output)
Switching capacities: 100 mA max. 30 VDC max.
Off voltage: Approx. 12 V (output impedance approx. 1.5 kOhm)
External reset, Manual reset, Automatic reset
Elapsed time (UP) and remaining time (DOWN) (selectable)
Zero suppression: Not equipped
Lithium battery (Service life: Approx. 10 years at 20 CEL)
Operating: -10 CEL to 55 CEL (with no icing or condensation)
Storage: -25 CEL to 65 CEL (with no icing or condensation)
Accuracy of operating time setting error temperature influences and voltage influences(including the rise time of the power source and the operating times of the internal and output circuits.)
Power-ON start: 0.01% 50 ms max. Rated against set value
Reset start: 0.005% 30 ms max. Rated against set value
The values are based on the set value.
between current carrying metal parts and exposed non-current carrying metal parts, between non-continuous contacts
between current-carrying terminals and exposed non-curernt-carrying metal parts: 2000 VAC 50/60 Hz for 1 min
between non-continuous contacts: 750 VAC 50/60 Hz for 1 min
between current-carrying terminals and exposed non-curernt-carrying metal parts: 6 kV
Between power terminals: +-2 kV
Between input terminals: +-500 V
Square-wave noise by noise simulator (square-wave noise by noise simulator (pulse width: 100 ns/1 us 1-ns rise))
Vibration resistance (Destruction)
10 to 55 Hz 0.375 mm single amplitude each in 3 directions for 2 hours
Vibration resistance (Malfunction)
10 to 55 Hz 0.25 mm single amplitude each in 3 directions for 10min
Shock resistance (Destruction)
300 m/s2 3 times each in 6 directions(3 axes)
Shock resistance (Malfunction)
100 m/s2 4 times each in 6 directions(3 axes)
Mechanical Life expectancy (relay output)
10000000 operations min. (under no load at 1800 operations/h)
Electrical Life expectancy (relay output)
100000 operations min.(3 A at 250 VAC resistive load at 1800 operations/h)
IEC60529(JEM): Panel surface: IP30
