New aines ats-98 butt set telephone test set bon

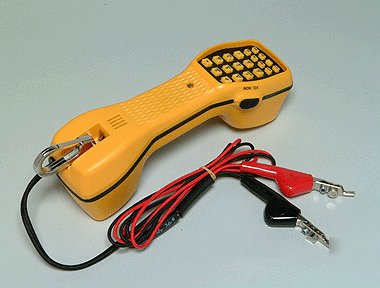

Aines ATS-98 & ATS-2000 Test Sets
A low cost, high quality test set.
The new Aines ATS-98 and ATS-2000 Telephone Test Sets are here! A data safe butt set for the telephone and computer network installer that doesn't break the budget. Feature rich without sacrificing quality (includes tone & pulse dialing, speed dial 9 storage spaces, each 18 digits long, last number re-dial, polarity indicator, mute button, audible ringer, data safe in monitor mode, and a flash-hook button). The set supports either loop or ground start operation without the need for a special cord! These sets are equipped with a high quality cord with our famous 5-way clip! The cord is manufactured from tinsel conductors insulated with PVC and nylon braided from materials which meet MIL SPEC C-83501. These cords meet both Bellcore and AT&T specifications.
The Aines ATS-98 & ATS-2000 meets or exceeds the following specifications:
Dual Tone Multi-Frequency (DTMF) / Tone Level: -2dBm nominal /
Freq Deviation: +/-0.7% maximum / Twist: <3dB
Pulse Rate: 10PPS / Make/Break: 40/60 / Interdigit: 1000 mSec
Loop Length: >2000 ohms @ 48Vdc / Monitor: >100K ohms @ 1004 hertz
Talk: 250 ohms typical / Keypad: Moisture resistant 4x4 format with digits, *, #, memory store,
memory recall, pause and redial buttons.
DTMF/pulse dialing / Polarity Indicators / Data safety in MONITOR Mode / 10 Number Storage
Speed Dial / Last Number Redial / FLASH HOOK Button / MUTE Button
Audible ringer with AUTO-RING sensing / 1 YEAR WARRANTY
Loop Start and Ground Start without need for special cord
Industry standard and approved cord with Alligator clips (piercing pin and bed of nails)
High impact polyamyd plastic case with moisture seal
*RECAMP Receiver Amplifier (ATS-2000 model)
