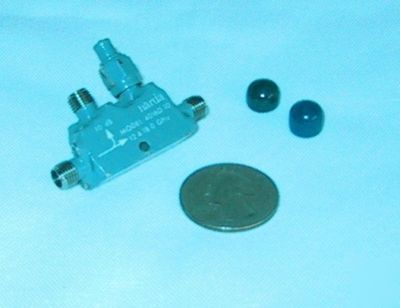

Narda 10DB directional coupler 4016D-10 12.4-18 ghz
Narda 10 dB Broadband Directional Coupler
Model 4016D-10 12.4 18.0 GHz
* Manufacturers data shown below for reference:
* Frequency Range: 12.4 18.0 GHz
* Frequency Sensitivity: +/- 0.50 dB
* Coupling: 10 dB +/- 1.0 dB
* Insertion loss: 0.55 max, 1.1 dB max (including coupled power)
* VSWR: 1.35 dB max (primary) 1.40 dB max (secondary line)
* Directivity: 15 dB min (2.0-12.4 GHz), 12 dB min (12.4-18.0 GHz)
* Cosmetics: Several small paint chips and one larger paint chip on side of coupled 50 ohm load.
* Electrical Tested: Yes - Tested at 17 GHz.
* Tests/Results: Works fine.
