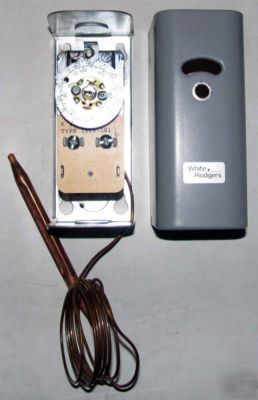

Line voltage thermostat control -30° to +90°f adj. dif.
Line Voltage Temperature Control
Switch Type: SPST Close on Rise
Temperature Range: -30 to +90 F
Adjustable Differential: 3.5 to 40 F
Inductive Rating @ 240 VAC: 8 Amps
Inductive Rating @ 120 VAC: 16 Amps
Locked Rotor Current @ 240 VAC: 42 Amps
Locked Rotor Current @ 120 VAC: 84 Amps
Non-Inductive Current @ 120 VAC: 25 Amps
Non-Inductive Current@ 240 VAC: 22 Amps
