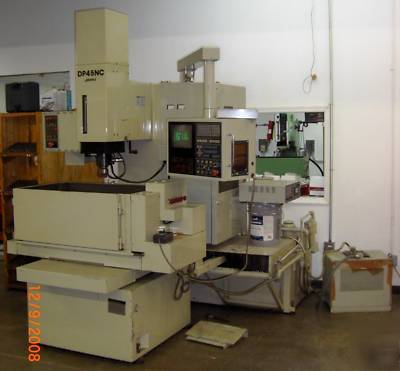

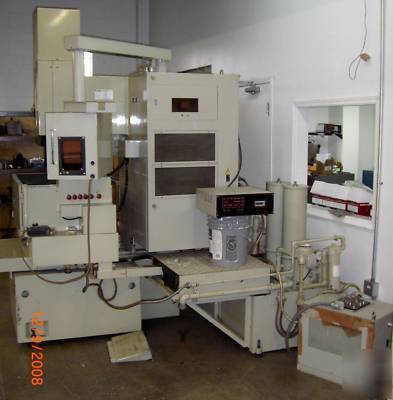

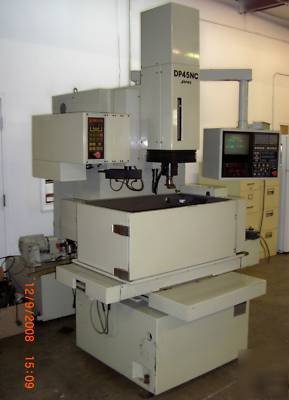

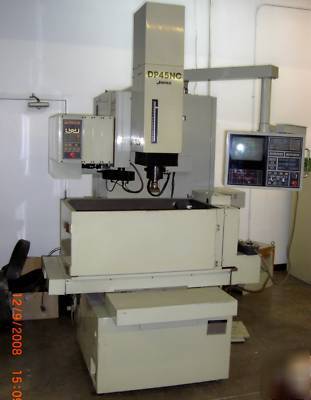

Japax model DP45NC cnc sinker edm, 8 electrode changer
Work Table Size 27 1/2" L-R X 15 13/16" F-B
Work Tank, Inside Dim. 37 9/16" L-R X 23 3/4" F-B X 13 13/16" Deep
Servo System X, Y, & Z Digital Servo System
X, Y, & Z Aves Drive System Direct Drive DC Motor
Minimum Drive Increment .00004" / .001 MM
Ram Platen to Work Table 13 13/16" to 23 3/4"
Table Feed Rate, Jog 23 3/4"/Min
Table Feed Rate, Step .00004" / .001 MM/Min
Overall Dimensions 59" L-R X 73" F-B X 97" Tall
We know the new owner of this Excellent Japax DP45NC will be very happy with their purchase.
Machine Tools of America and you can contact us by phone: Bruce at (***)-545-8475 or Andy at (***)-604-6031. Our fax is (***)-866-6668 or (***)-866-8514 and the office phone is (***)-866-8334, but we re seldom there.
Inform them that they will pick up your machine at Machine Tools of America s warehouse at 515 Kercher St., Miamisburg, OH 45342. The Complete EDM Sytem will weigh approximately 8,500# and occupy 10' of bed space. Further, inform them that it needs to be tarped.
