Ifs D19130SHR digital self healing ring module

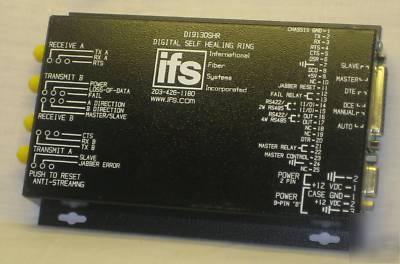

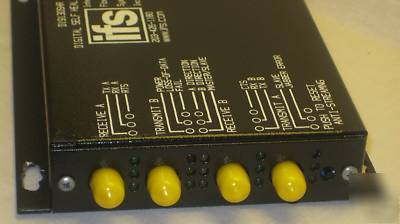

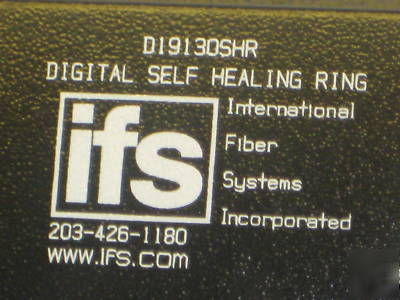

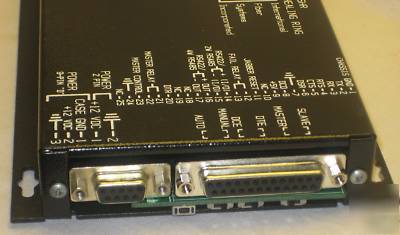

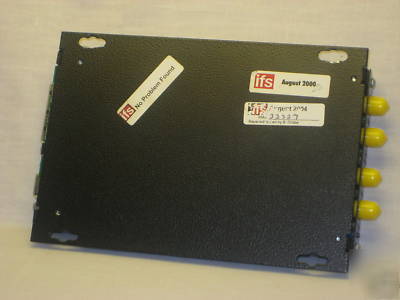

IFS D19130SHR Digital Self Healing Ring Module
* IFS (International Fiber Systems)
* Digital Self Healing Ring Module
* Includes Power Adapter and Connector
* Item has been powered up and functionally tested in our facility
* Purchased from the maintenance inventory of a system integrator
* Current Online Advertised Price (Lowest Found)
Information From The Manufacturer's Website
RS-232, RS-422 or RS-485 Fault-Tolerant, Self-healing Ring Transceiver
The IFS D19100SHR series Self-Healing Ring Transceiver unit is a fully-digital transceiver designed for implementing traffic signalization/ communications data networks of the highest possible reliability. Unlike competing products, the multiple-master capability of this series provides full protection against the possibility of a single point of failure, significantly enhancing the reliability and availability of the network. Primary and alternate-master transceiver units may be either co-located or diversity located, and the data input/output interconnection to the primary and alternate-master units is achieved by the use of a simple "Y" electrical cable. Full data re-clocking and regeneration permit an almost unlimited number of transceiver/controller units to be used within the network. These environmentally-hardened transceivers are ideal for use in unconditioned out-of-plant or roadside installations. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. LED indicators are provided for rapidly ascertaining equipment operating status, and these units are available in either stand-alone or rack mount configurations.
* Unique Multiple-Master Capability Eliminates the Possibility of a Single Point of Failure within the Network; No Need for Costly Node Processors or External Switching Equipment and Custom Software
* Simple "Y" Electrical Cable Provides Data Interconnect Between Primary and Alternate-Master Transceiver Units
* Full Data Re-clocking and Regeneration: No Limit as to the Number of Transceiver Units Used Within the Network
* User-Configurable Optical & Electrical Anti-Streaming Provides Network Protection Against Faulty Streaming Controller Operation
* Exceeds NEMA TS-1/TS-2 and Caltrans Traffic Signal Control Equipment Environmental Specifications for Operating Temperature, Shock, Vibration, Humidity, and Voltage Transient Protection
* Robust Design Assures Extremely High Reliability In Unconditioned Out-of-Plant/Roadside Environments
* LED Status Indicators Provide Rapid Indication of All Critical Operating Parameters
* User-Selectable Local or Master operation and DTE or DCE Interface Ensures Ease of Installation and Maximum Versatility
* Solid-State Current Limiters on All Power Lines Provide Equipment Protection
* Wide Optical Dynamic Range: Optical Attenuators are Never Required
