Torqube gear speed reducer w/ magnapak 1/3 hp drive

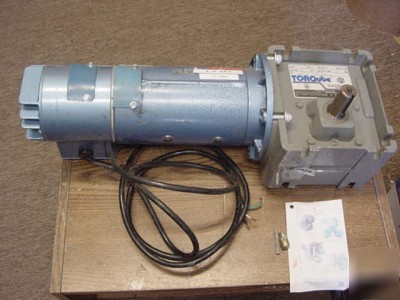

Torqube Gear Speed Reducer W/ Magnapak 1/3 HP Drive
Torqube Gear Speed Reducer W/ Magnapak 1/3 HP Drive W/ Power Unit. Used. Powers up. Stock 48-E-1.
Torqube: US Electric Motors, Mechanical Gear for Varying Output Speed
ID # L261R003 F-E636-00-313, Frame 17, Type QC, Max Input HP 1.0, Input RPM 1750, Gear Ratio 15 SF 1.0, Max Output Torque 445 In Lbs.
Magnapak Motor Drive: Graham Transmissions
Model 302CM1-LD, RPM 1750, DC Volts 90, Field Volts PM, Insul. Class H, Duty Cont., DC Amps 3.4, FD Amps PM, Frame 56C.
Magapak Power Unit: Graham Transmissions
Model 302CM1-LD, AC Volts115, DC Volts 90, Field Volts PM, Ambient Degree 40C, AC Amps 5.2, DC Amps 3.4, FD Amps PM, Mtg. Encl, Dial 0-100.
