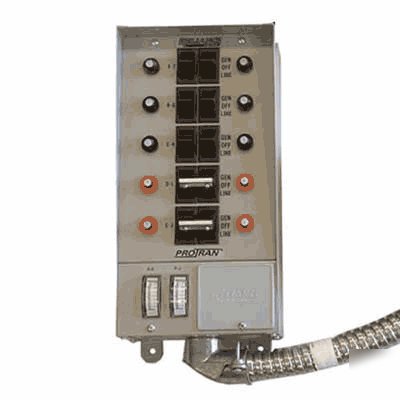

Reliance 51410C 12500 watt transfer switch + meter
Reliance 51410C 12500 Watt Transfer Switch + Meter
Reliance 51410C Pro/Tran Indoor Transfer Switch
12,500 Running Watt + Wattage Meter
These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications. The 18-inch flexible conduit whip attaches easily to the load center and all wires are clearly marked. Simply select the circuits needed in an emergency and connect them to the Pro/Tran wire leads. Pro/Tran transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, reset-table branch rated circuit breakers and non-defeatable (break-before-make) double-throw switches. All models with a power inlet on the front *with exception to model 30216BRK* also include a cover for the power inlet opening that facilitates hardwiring. All models without a power inlet on the front include a covered opening that permits the installation of a power inlet for cord connection directly to the transfer switch.
Model Description: Pro/Tran
Max. Generator Running Watts: 12500
Max. Single-Pole Circuits: 10
Max. Double-Pole Circuits: 5
Max. Combined Load @ 125 VAC: 100
Max. Combined Load @ 250 VAC: 50
15 Amp Single-Pole Circuit Breakers: 6
20 Amp Single-Pole Circuit Breakers: 4
Dimensions H x W x D (inches): 13.75x7x4.5
Cabinet Type, NEMA: Indoor
* Reliance PB20 Power Inlet Box
2 Year Reliance Controls Factory Warranty
