New port 9016 laser diode controller w/ (16) 8510D

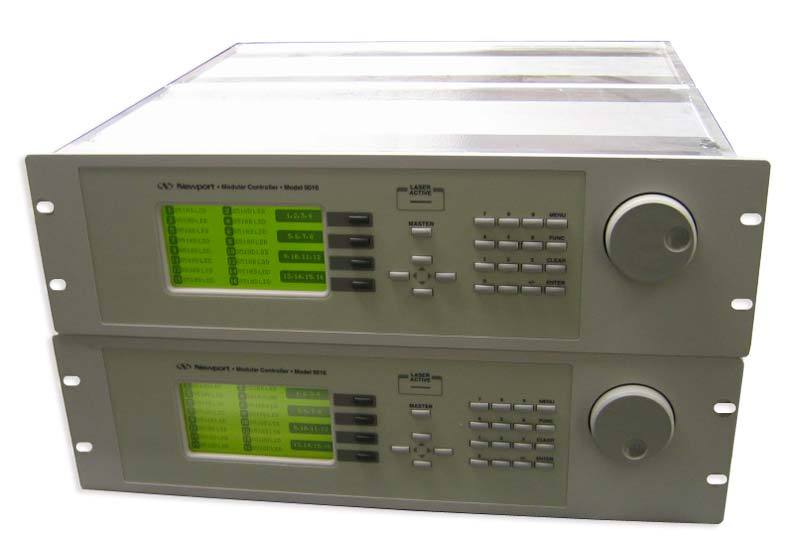

Newport 9016 Laser Diode Controller w/ (16) 8510D
Up for sale is a Newport Model 9016 Modular Controller with the following:
* 16 x 8510D. Dual LDD modules installed
* LDD Output Current Range: 0-1000 mA
The Newport Model 9016 Modular Controller expands on Newport s modular laser diode controller concept to meet the higher channel densities found in Dense WDM (DWDM) applications and 2-D VCSEL arrays where all the lasers have similar electrical configurations.
* The 16 bays accept Combo Laser Diode Driver (LDD)/ Temperature Controller (TEC) modules.
* The Combo LDD/TEC modules are designed for use in communication applications and have an internal function generator for testing systems.
* The user only needs to program the frequency, Imax, and Imin to modulate the laser diode output. Triangle, sine or square (50% duty cycle) waveforms are available from 200 Hz 300 kHz.
* This range of frequencies meets today s low frequency single-tone and high data rate test requirements for datacom and telecom.
* The mainframe automatically detects which module is installed in each bay and displays the system configuration on a large LCD screen. A sophisticated processor provides enhanced system control and data collection capabilities.
* GPIB/IEEE-488 and RS-232 interfaces are included with the Model 8016 for complete remote control and data collection. LabVIEW drivers are supplied with each 8016 mainframe.
* Automated testing and device evaluation are easily implemented using Newport s extensive library of LabVIEW commands.
