New electro-chemical devices ph-sensor PHS10-T23 cable

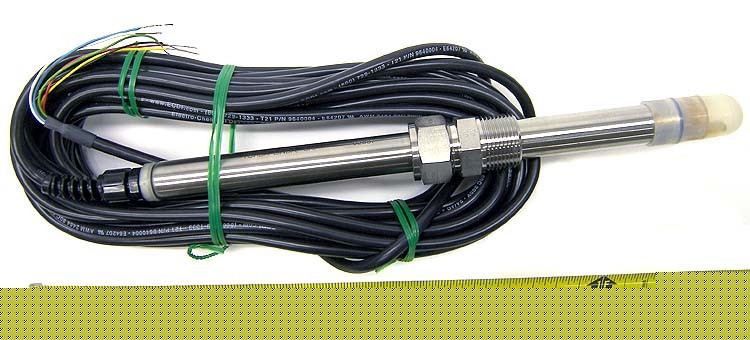

NEW ELECTRO-CHEMICAL DEVICES PH-SENSOR PHS10-T23 CABLE
Electro-Chemical Devices Immersion/Insertion Style pH-Sensor
Includes: 30 Ft Cable, 6-Pin Connector Cable
0-14 pH (electrode dependent)
Signal conditioned output, intrinsically-safe.
Integral to sensor. Three types available:
T23: Models T23, T28, & T21 transmitter
C22: System C22 Controller
Provided by the transmitter.
OF to +194OF (-5OC to +90OC)
Standard PHS10: 100 psig @ 90
Standard PHS17: 100 psig @ 90
PHS0: 0.75" dia x 13.75" lg. (1.9 cm x 34.9 cm)
PHS17: 0.75" dia x 24.00" lg. (1.9 cm x 60 cm)
Dimensions are housing diameter x length of sensor.
S10 sensor length is measured from front of seal guard to rear
S17 sensor length is measured from front of the fully extended
valve retraction assembly to the rear of the extension
Standard: 316 stainless steel
Optional: Titanium, grade 2 (T )
HF resistant Viton (VIT75)
PROCESS CONNECTIONS: (optional)
PHS10 -75 3/4" 316ss gland fitting with nylon
-75HT 3/4" 316ss gland fitting with
-75SF 3/4"316ss gland fitting with
-75TFE 3/4" all Teflon gland fitting.
-100 1" all Teflon gland fitting (Kynar
PHS17: -VSS 1" 316ss valve-retraction assembly.
-VKY 1"Kynar valve-retraction assembly.
All sensors ordered with valve-retraction assemblies are
provided with safety lanyards.
OC over the full temperature range.
Uses a 3,000 ohm Balco RTD, integral to sensor.
*SENTINEL DIAGNOSTIC FEATURE:
Option allowing for continuous monitoring of the degradation
of the internal reference fill solution.
The S17 sensor includes an extension assembly. The Sl0 sensor does not.
** The "SENTINEL" Pre-pHault diagnostic feature is patent pending.
Temperature ratings are a function of the pH electrode. High temperature electrodes are necessary options to achieve higher
temperatures. Refer to the appropriate electrode specification sheets.
Optional pressure ratings are allowed with the use of metallic retaining ferrules and higher pressure pH electrodes. High temp
electrodes should be used where high pressure and temperature are present.
