280MW 650NM red high power laser diode module w/driver
280mW 650nm Red High Power Builtin Driver Burning Laser Diode Module
There are countless uses for a small compact HIGH POWER RED laser, such as HOLOGRAPHY, LASER LIGHT SHOWS, High Speed Communication, Medical, etc...
It can light cigarette and punch vinyl immediately.
They are rated for Class IIIb laser diode about 280mW @650-660nm CW extracted from DVD WR.
Output power : about 280mW(444mA) CW at driver input voltage about DC 4.5V(3xAA) battery

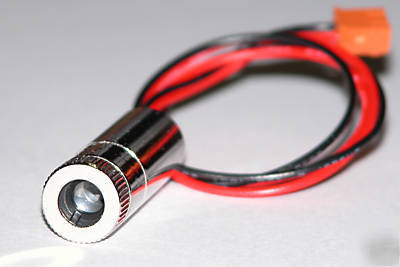

Housing : Diameter 12mm, Lenth 35mm, cable lenth 30cm(red is plus, black is minus) with connector, adjustable lens.
Driver : 3.6-5.0V(must not over 5.1V include ripple) - Power souce must supply more than 600mA
444mA switch mode constant current Driver DC input power ssource voltage range 3.5-5.0V.
Size 16 x 10 mm- Board pattern can be change.
Pin from left pad up to down; +V Input, GND, -Disable(default enabled)
Right up to down; +V output, GND.
You Are over 18 and know the potential hazards inherent in high power laser equipment.
You WILL use this device in a safe and sane manner for a legal purpose
You Accept this item as a COMPONENT for integration in a system of YOUR OWN design and will hold the SELLER LEGALLY harmless from any and all LIABILITY
You know the electronic safety precautions necessary with this item and therefore accept it AS IT IS as an EXPERIMENTAL COMPONENT without warranty.
It is possible order optional 110V AC to about DC 4.5V switching power supply(switch not included)- $20
Laser Beam From about 100mW laser module
Drive : Constant Voltage 2.85V (Click Photo to enlarge)
