Esd 2000I reservoir electrostatic discharge simulator
ESD 2000i Reservoir Electrostatic Discharge Simulator

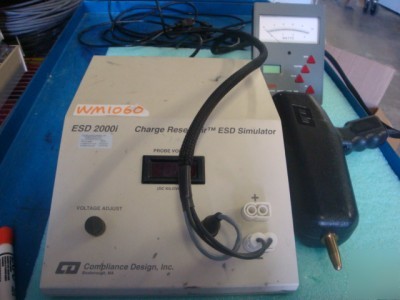

ESD 2000i Charge Reservoir Electrostatic Discharge Simulator w one gun and accessories
Compliance Designs ESD - 2000i
Charge Reservoir Electrostatic Discharge Simulator
Engineeredto test for compliance with ESD standards. TheESD-2000i is the solution to manufacturer's concerns about system level immunity. Utilization ofthe latest ESD technology, including ComplianceDesign's Charge Reservoir, has yielded subnanosecond rise times for contact discharge eventsin strict accordance with IEC 801-2, Issue 2.Inaddition, the ESD-2000i can easily produce eitherpositive or negative discharges at voltages as highas 25kV in a variety of human models.
TECHNICAL SPECIFICATIONS (IN CONFORMITY WITH IEC 801-2)
* Discharge voltage V o (air-discharge): 2 -25 kV
* Discharge voltage V o (with contact discharge adapter): 2 -9 kV
* Polarity: positive/negative
* Discharge capacitor Cs: 150 pF 10%%
* Discharge resistor Rd: 330 S2 10%%
* Operating modes: single/repetitive discharges
* Test finger: conforms to IEC 801-2,1991
* Max. discharge energy: 50 mJ at 25 kV
* Rise time (air discharge): <1 ns for voltages <_8 kV
* Rise time (with contact adapter)0.7 -I ns
* First current peak (with contact discharge adapter) at voltage set to:
* Current pulse shape: conforms to IEC 801-2,1991
* Voltage indication accuracy (LED): 5%
