5340 cincinnati bickford super service 21†drill

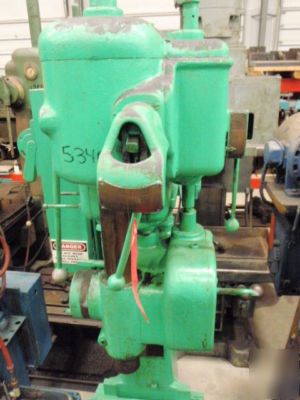

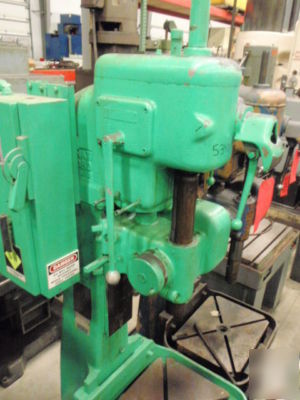

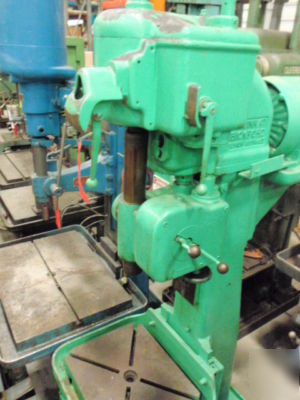

CINCINNATI BICKFORD SUPER SERVICE 21 BOX COLUMN DRILL
Drills to center of circle on table 20
Drills to center of circle above table 23
Maximum distance spindle to table 31
Minimum distance spindle to table 3
Maximum distance spindle to base 43
Minimum distance spindle to base 27
Maximum distance top of table to floor 29
Minimum distance top of table to floor 17

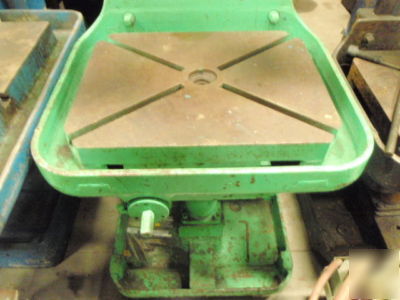

Working surface of table 16 x 21
Distance centerline of spindle to face of column ways 11
Vertical adjustment of moveable table 12
Vertical adjustment of moveable head 6
Vertical travel of spindle by power 10
Standard feeds furnished (thousandths per revolution) 4,6,8,12,15,20,28 and 40
Approximate floor space 26 x 52
