22" direct drive corrosion resistant exhaust house fan
22" Direct Drive Corrosion Resistant Exhaust House Fan

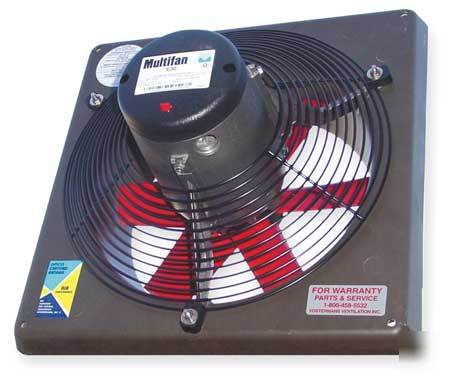

Mulitfan 22" Direct Drive Corrosion Resistant Exhaust House Fan 3/4 HP
Model: 6E5605M71100 Type: 6E56
This retails for $1129.00, the thermostat is a variable on Grainger.com for $67.00
Direct-Drive Corrosion-Resistant Adjustable-Speed Exhaust Fans
Variable-speed axial fans are engineered for continuous operation in highly corrosive environments, outdoors, and in wet applications.
Noncombustible motor cap and sound-absorbing, antivibration cast aluminum supports. UL Listed and CSA Certified.
1-phase totally enclosed motors: high-efficiency, water-resistant, automatic thermal protection, Class F insulation
Permanently lubricated ball bearings
OSHA-compliant, black powder-coated intake guards
Corrosion-resistant fiberglass venturi frames
Speed controllable, except No. 3C966 is constant-speed only
Exhaust Fan, Corrosion Resistant, Medium Performance, Propeller Dia 22 In, CFM @ 0.000-In SP 5595, @ 0.050-In SP 5385, @ 0.125-In SP 5192, Max Ambient Temp 140 F, Voltage 240, 60 Hz, 1 Phase, Full Load Amps 2.60, Bearing Type Sealed Ball, Motor RPM 1090, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Air-Over, Height 27 9/16 In, Width 27 9/16 In, Max. Depth 13 13/16 In, Sq. Opening Required 23 7/8 In, Intake Guard Material Steel, Speed Controller 3C954
ItemExhaust FanTypeCorrosion Resistant, Medium PerformancePropeller Dia. (In.)22CFM @ 0.000-In. SP5595CFM @ 0.050-In. SP5385CFM @ 0.125-In. SP5192Max. Ambient Temp. (F)140Voltage240Hz60Phase1Full Load Amps2.60Full Load Watts560Bearing TypeSealed BallMotor RPM1090Motor TypePermanent Split CapacitorMotor EnclosureTotally Enclosed Air-OverMotor InsulationClass FThermal ProtectionAutomaticHeight (In.)27-9/16Width (In.)27-9/16Max. Depth (In.)13-13/16Sq. Opening Required (In.)23-7/8Frame MaterialFiberglassIntake Guard MaterialSteelWire Guard FinishBlack Powder CoatPropeller MaterialPolypropyleneSpeed Controller3C954
