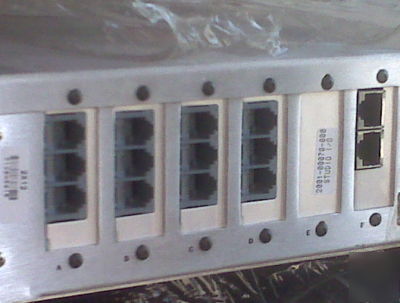

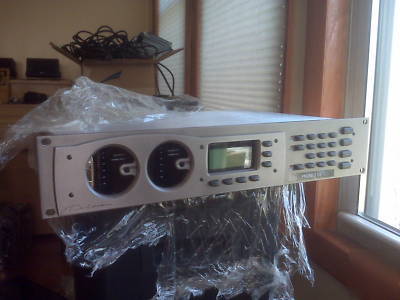

Telos two digital hybrid phone system 2X12


The sleek digital technology combined with a friendly user interface, makes the Telos TWO ISDN Digital Telephone Hybrid such as desirable companion for broadcast caller conferencing
The new Telos TWO ISDN Hybrid opens new vistas for audio professionals. The slim Telos TWO case contains two digital hybrids, so you can conference two callers internally. No extra hybrid needed because it s already there. Of course, all mixing and conferencing is done completely in the digital domain. AES/EBU as well as analog outputs give you maximum output flexibility. And built-in Ethernet connectivity makes easy work of remote control and software upgrades.
Telos TWO plugs right in to digital BRI phone lines so you can take advantage of clean, pure digital caller audio, right from the Central Office along with truly independent send and receive paths, lower noise and distortion, faster call setup and caller ID functionality.
* Two high performance digital telephone hybrids in a single 2-RU rack space. Conference linking ability lets you set up high-quality conferencing between callers with no external equipment only a single mix-minus is required.
* Studio-grade 20-bit A-to-D conversion, combined with noise gating and shaping, guarantees superb send-to-caller audio.
* Simultaneous AES/EBU and analog inputs and outputs.
* Automatic high-precision sample rate conversion on incoming ISDN calls.
* Sophisticated AGC/limiting functions and three-band Digital Dynamic Equalization ensure consistent caller audio levels and spectral consistency.
* Easy to use front-panel menus, meters and keypad make setup and operation simple.
* Caller ID support and fully adjustable Caller Ducking helps talent stay in control.
* Built-in Ethernet and RS-232 ports for remote control and easy software upgrades.
* Two-line stand-alone digital hybrid. Connects directly to BRI/U/S telephone lines; features conferencing, adaptive dynamic caller EQ, AGC, ducking; supports caller ID
Audio Performance Specifications
Trans-hybrid Loss 76 dBr RMS with white noise
Frequency Response (Caller to Output) 200Hz -3500Hz, 1dB
Receive Output THD+N (@ 1 kHz, OdBu output) 0.06%; Dynamic Range - 93dBFS Signal-to-Noise: >88dB
Send Input -0 to +8dBu nominal level with 13dB head room before clipping
AES/EBU Digital INput/Output Sample rates supported: 32, 44.1, 48kHz Output clock: ISDN network clock or AES input source
Coding Modes A-law or -law (selectable)
Converter Word Length Analog to digital 20 bits, digital to analog 16 bits
ISDN BRI (28+D) Interfaces: USA/Canada 2 wire U interface (built in NT1) Worldwide: 4 wires S interface
Power Supply Internal 110/240 VAC
Dimensions & Weight All rack mounts are 19 wide. Depth does not include connectors #0180-1000/2000 Telos TWO: H: 2RU D: 13in/33cm Wt: 10lbs/4.5kg
More Info from a Telos press release:
Telos TWO Dual Digital Hybrid Is A Breakthrough For Call Segments
Faster call set-up, better call supervision and management and excellent on-air quality are the features improving call segments on radio
programs with the Telos TWO Dual Digital Telephone Hybrid
The Telos TWO is one of our breakthrough products in broadcast telephony, explained
Steve Church, CEO of Telos. We ve built our reputation on making telephone products that
deliver superior audio for stations and simplify the lives of talk show producers. It s never
been this easy to produce great-sounding talkshows and phone segments.
Telos TWO interfaces directly to digital phone services, creating an all-digital path from the
telco CO to the studio. The benefits are truly independent send and receive paths, virtual
elimination of induced noise and distortion, fast call set-up and crystal-clear digital caller
Telos TWO Call Segment Breakthrough / Add One
Each Telos TWO contains two digital hybrids in a single 2-RU rack space, making it easy to
conference callers internally with no external equipment. Both AES/EBU and analog inputs
and outputs are provided, as well as Ethernet connectivity.
The Telos TWO also features unmatched send and receive separation using Telos timetested
Adaptive Cancellation technology. Each hybrid automatically adjusts to phone line
three-band digital dynamic EQ keep caller audio levels consistent. And the Telos Two has
user-friendly front panel menus, meters and keypad to make set-up and operation a
Another press release from Telos about using the Telos for remote studios:
TELOS TWO PROVIDES SOLUTION FOR REMOTE PBX USERS
RTV Oost Finds: Telos TWO Hybrid Solves Common Home Studio Problem
Home Studio producers and talent remotely connected to office PBX systems have found an easy way to gain a long-sought capability: the ability to transfer calls directly from their studio hybrid to their office PBX systems.
This is the answer to our prayers, said Clemens Busscher, Technical Manager of RTV Oost in Hengelo, Netherlands. Transferring calls from the hybrid is a hot topic among broadcasters here, and the Telos TWO is the only hybrid we ve tested which can do so.
According to Busscher, many broadcasters in Holland and Germany use PBX systems on which home extensions can be created. This feature allows callers to be transferred to someone working in their home studio, and then let the call be transferred to the office when the interview is complete. Older hybrids accept calls can transferred from the PBX to the home studio, but cannot transfer calls back due to lack of DTMF tone generation capability. Third-party solutions are very expensive costing as much as 5,500 according to Dani l Geertsema of Media Utilities, Telos Systems representative for the Netherlands.
RTV Oost tested several brands of hybrids along with the Telos TWO. The hybrids were connected to a Philips 3000 SOHO PBX, one of the most common PBX's in Belgium and Holland for broadcast studio environments. Of all the hybrids tested, only the Telos TWO was able to transfer calls from the home extension back to the office PBX.
The Telos TWO is the world s first telephone hybrid that interfaces directly to digital telephone services. It connects directly to ISDN Basic Rate Interface (BRI) phone lines, delivering consistently clean, clear caller audio by maintaining an all-digital path from the telephone provider s Central Office to the user s studio. Telos TWO supports two call circuits, and contains two hybrids for superior conferencing.
