Rohm high power red laser diode 240MW pulse 100MW+ con.

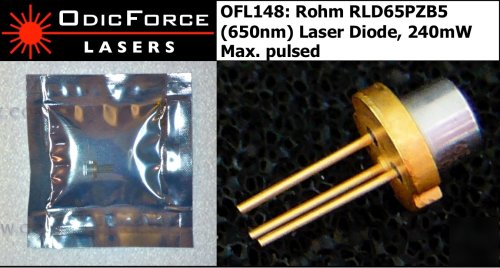

Rohm High Power Red Laser Diode - 240mW Pulsed
* Brand New RLD65PZB5 Laser Diodes rated at 240mW pulse
* Rated 105mW CW we have used up to 120mW continuous
* High quality diode at a bargain price for experimentation
* Information sheet including details and test data with our driver board included
Excellent price for a brand new high power diode. In continuous mode we see the lase threshold at 60-75mA and around 100mW optical power at 200mA, (658nm). Tests using our driver board (OFL144) and a TTL pulse drive (2kHz) show ~230mW @320mA. Manufacturer's rating: 240mW pulse mode, >4000hrs lifetime.
If you check out via the e-Shop on our Website (use the e-mail link sent after the sale is completed) you can add driver boards, holders, lens etc. from our shop.
Single diodes are sealed in a translucent anti-static bag. We only accept returns for unopened bags because of the static sensitivity of these devices.
For 5+ diodes we supply a free rigid anti-static component box.
This is a high power Class3B laser component and direct observation of the laser light can cause eyesight damage.
All sales are on the basis that responsibility for safe use passes to the purchaser at the time of sale and that it is the sole responsibility of the purchaser to ensure it is used in a safe and legal manner.
Our website contains important safety information and contact details are sent with the purchased item.
