Sokkia SDR33 data collector 2MB perfect warranty sdr 33
SOKKIA SDR33 DATA COLLECTOR 2MB MEMORY SDR 33

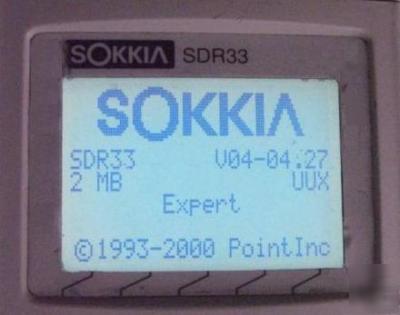

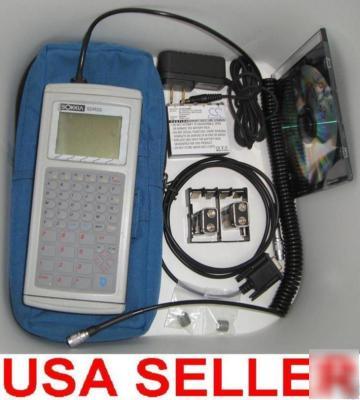

You are looking at a Sokkia SDR33 Expert data collector with 2 MB memory, which can store approximately 23,000 points which is more than enough for the biggest jobs I have seen , you get all you see in the picture, the data collector comes with All the following:
Brand New Lithium backup batteries
Brand New rechargeable battery (Lasts longer than 9V batteries in cold weather, and saves you money in the warm weather)
Brand new 100V-240V Wall charger
Battery adapter, for use with the 9V batteries
Soft Carrying bag in excellent condition
Plugs directly into U.S. standard wall outlet, to use in other countries you may have to use an adaptor (not included)
With all the above brand new parts, this data collector is ready to work right out of the box, and you will not have to worry about replacing any parts on it for many years to come.

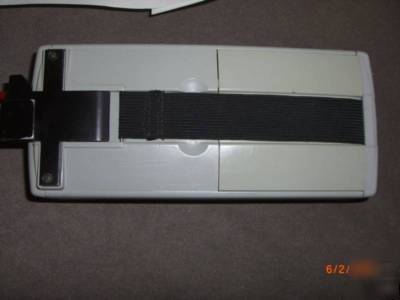

The outside case shows minor signs of use and is free of major cracks or damage
This data collector has been tested using a Sokkia total station and is also was connected to a computer and data was uploaded and downloaded to make sure all systems work as they should,
The cable that comes with this data collector works with Sokkia or Topcon instruments, I can provide you and an adapter for a Leica station at a discounted price if you need to use this data collector with a Leica total stations
The software in the SDR33 lists the following choices of instruments in addition to the Sokkia Instruments: Set and Net series
Pentax: PTSII/III, III/V/PCS, PTS-10
Zeiss: Elta 2/3, Elta 46R, Elta RL, Elta 50, dini 10/20 digital level
Topcon: GTS/ET1/ET2, GTS-3, GTS300 (The adaptor cable for the older-model Topcons without RS-232 Serial communications is no longer available from Sokkia. A third-party solution is available but the cost is prohibitive)
Wild: T1000, T1000+DI, T1600, T1600+DI, T2000, T2000+DI, T1010/1610, T1010/1610+DI, TCA110, TC/TCM series, NA2000/3000 digital level
Nikon: A-series, D-50, Newer DTM-series (The SDR33 will not work with the older-model DTM-1 and DTM-5 total stations due to them not having RS-232 compliant communications. If your Nikon total station has a 5-pin data-out port, it will not work with the SDR33. If it has a 6-pin data-out port, it should work with the SDR33 and the required adaptor cable available from Sokkia)
Click here to view complete SDR33 product brochure
