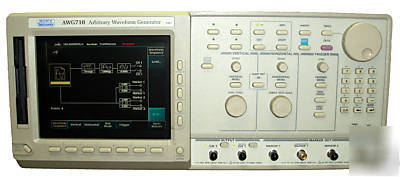

Tektronix AWG710 4 GS/s 2 GHz Single Channel Arbitrary Waveform Generator
* 01 32 MPts Waveform Memory
The Tektronix AWG710 combines excellent signal fidelity with ultra high-speed mixed signal simulation, a powerful sequencing capability and graphical user interface with flexible waveform editor, to solve difficult measurement challenges in the disk drive, communications and semiconductor design/test industries. 4.0 GS/s sample rate simulates real-world signals up uo 2.0 GHz. Two markers with 1.6 ps RMS jitter deliver ultra-stable timing to the DUT. 8-bit vertical resolution for precise signal replication. 16 M point record length provides longer serial or rotational media data streams. The EZ Function Generator Mode allows quick creation and edit of sine, square, triangle, ramp, pulse and DC waveforms. Real-time sequencing creates infinite waveform loops, jumps, patterns and conditional branches. Equipped with GPIB and LAN (10/100Base-T) interfaces.
* 4.0 GS/s Sample Rate Simulates Real-world Signals Up To 2.0 GHz
* 2 Markers With 1.6 psRMS Jitter Deliver Ultra-stable Timing to the Device-under-test (DUT)
* 16 M or 32 M Point Record Length Provide Longer Serial or Rotational Media Data Streams
* 8-bit Vertical Resolution for Precise Signal Replication
* EZ Function Generator Mode Allows Quick Creation and Edit of Sine, Square, Triangle, Ramp, Pulse and DC Waveforms
* Waveform Quick Editor with 300 fs Edge Timing Resolution Delivers Output Edge Control with Near Real-time Precision
* Real-time Sequencing Creates Infinite Waveform Loops, Jumps, Patterns and Conditional Branches
* GPIB and LAN Interface
Possible Applications
* Disk Drive Read/Write
* Design and Test Communications Design and Test
* Arbitrary IF Baseband Signals
* Standard Waveforms for Communications
* Pulse Generation
* High-speed, Low-jitter
* Data and Clock Source
* Mixed Signal Design and Test Real-world Simulations
* Corruption and Enhancement of Ideal Waveforms
* Timing and Amplitude
* Signal Impairments
* Waveforms Imported from
* MathCad, MATLAB, Excel and Others
* Many other applications
