New port 5600-65 advanced 65 amp high power laser driver
Retail price for this item with the cable is $5515.
The Model 5600 Laser Diode Drivers operates in either CW or Quasi-CW (QCW) mode with up to 65 A of output current. The instrument is capable of driving multiple high-power laser diode bars in series. Several versions are available with maximum compliance voltages from 5 V 30 V. Full 16-bit control and characterization (L, V, I) of laser diodes is attainable via the IEEE-488 or RS-232 interface.

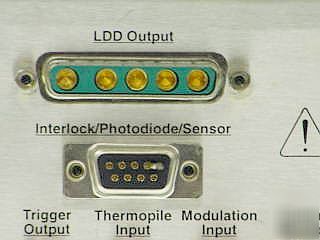

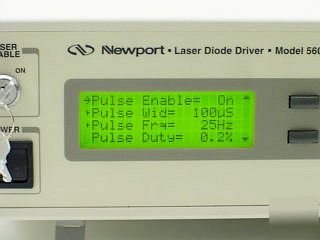

An internal function generator is programmable from 200 Hz 300 kHz with either a sinewave or squarewave output, allowing signal modulation in both the constant current (ACC) mode and in constant power (APC) mode. In addition, an external analog modulation input port is included allowing modulation of the output current using other waveforms and frequencies.

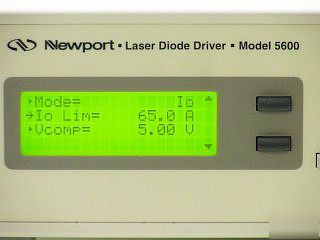

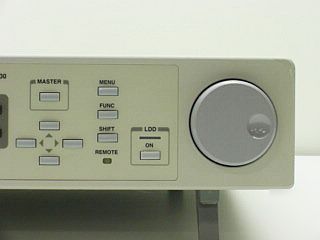

During operation, the front panel keys can be disabled to prevent any inadvertent changes in the output by accidental movement of the control knob.

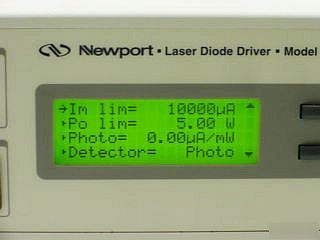

Complete laser diode protection is provided, including transient detection and filtering, intermittent contact protection, independent current limit and power limit settings, output off shorting circuits and a slow turn on sequence. In addition, shielded cables are available to protect against radiated energy from outside equipment, providing the lowest noise output to the laser diode.
Advanced circuit designs and careful layout of laser diode drivers provide you with an extremely low noise, highly stable output current. External analog modulation input allows precision control of the laser output for a variety of applications including power level control and wavelength tuning.

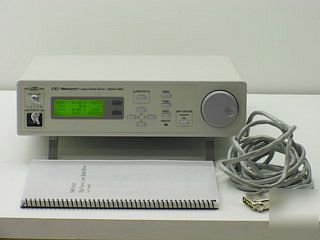

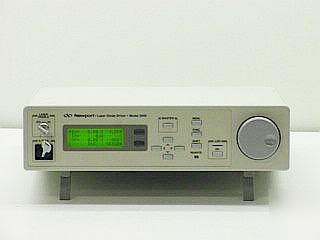

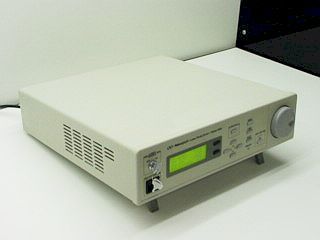

1- Newport 5600-65 Advanced Laser Driver

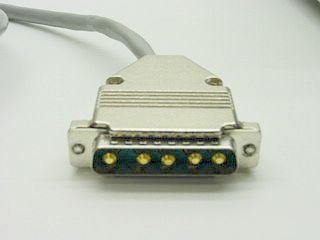

2- Laser diode output cable rated for > 65 amps
