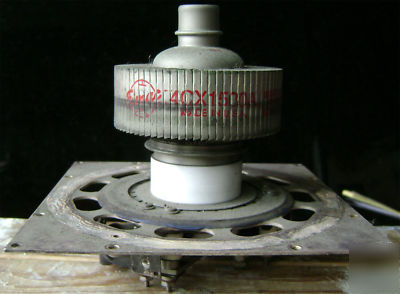

Eimac 4CX1500A tube
Plate Dissipation (Max.) 1500 watts
Screen Dissipation (Max.) 75 watts
Grid Dissipation (Max.) 25 watts
Frequency for Max. Ratings (CW) 150 MHz
Filament Thoriated Tungsten Mesh
Current Thoriated Tungsten Mesh 38.5 amperes
Capacitances (Grounded Cath. Connection)
Amplification Factor (g1-g2) 5.5
Transconductance 26,000 mhos
Recommended Air-System Socket SK-831
Recommended Air Chimney SK-806
Maximum Seal & Anode Core Temperature 250 C
Maximum Length 4.90 in; 124.50 mm
Maximum Diameter 3.37 in; 85.60 mm
Weight (approximate) 36 oz; 850 gm
