36" chk 30HP spdl blanchard 20K-36 rotary surface grind
36" Chk 30HP Spdl Blanchard 20K-36 ROTARY SURFACE GRIND

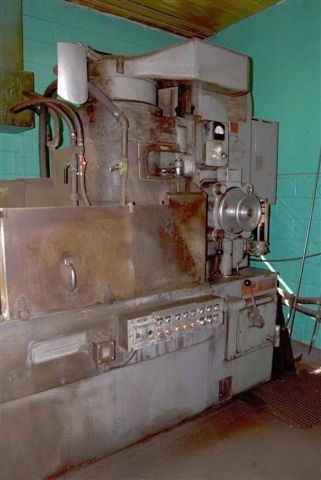

36" Chuck 30HP Spindle Blanchard 20K-36 ROTARY SURFACE GRINDER
36" BLANCHARD ROTARY SURFACE GRINDER
CHUCK DIAMETER .................................... 36"
SWING INSIDE GUARDS ............................... 38"
VERTICAL RANGE UNDER NEW WHEEL .................... 12"
MAXIMUM LOAD ON CHUCK ....................... 3,000 LBS
GRINDING WHEEL DIAMETER ........................... 20"
GRINDING WHEEL SPEED .......................... 720 RPM
CHUCK SPEEDS (6) .......................... 6 TO 33 RPM
INFINITELY VARIABLE POWER DOWNFEED .... 0.004" TO .080"
APPROXIMATE DIMENSIONS.............12'L X 8'4"W X 9'1"H
APPROXIMATE WEIGHT ......................... 12,750 LBS
30 HP 3/60/230-460 VOLT SPINDLE MOTOR
WET BASE w/SELF-CONTAINED COOLANT SYSTEM
36" ELECTRO-MAGNETIC CHUCK (1/2" CHUCK LIFE)
"TRABON" HAND-PUMP LUBRICATION SYSTEM FOR VERTICAL WAYS
20" DIAMETER SEGMENTED WHEEL (CORTLAND)
WHEELHEAD HAS RAPID RAISE & LOWER BY POWER
