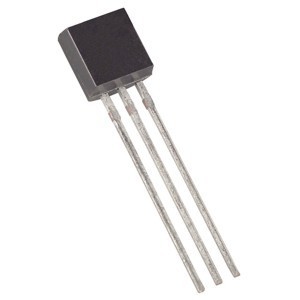

> LM335 LM335AZ prec. temperature sensor -40/+100 rohs
LM335 LM335AZ prec. temperature sensor -40/+100 rohs
LM335AZ PRECISION TEMPERATURE SENSOR RANGE FROM -40 to +100 C DEGREE - RoHS
DESCRIPTION - ( from datasheet )The LM135, LM235, LM335 are precision temperature sensors which can be easily calibrated. They operate as a 2-terminal Zener and the breakdown voltage is directly proportional to the absolute temperature at 10mV/oK. The circuit has a dynamic impedanceof less than 1W and operates within a range of current from 450mA to 5mA without alteration of its characteristics. Calibrated at +25oC, the LM135, LM235, LM335 have a typical error of lessthan 1oC over a 100oC temperature range. Unlikeother sensors, the LM135, LM235, LM335 have a linear output.
Its main features are :- DIRECTLY CALIBRATED IN oK .- 1oC INITIAL ACCURACY .- OPERATES FROM 450mA TO 5mA - LESS THAN 1 OHM DYNAMIC IMPEDANCE
