Itt neo-dyn 132T4FC6 temperature switch
ITT Neo-Dyn Temperature Switch/Internal Adjustment
Compact, adjustable, direct mount temperature switch featuring the efficient Nega-Rate Belleville disc spring for set point stability and vibration resistance
Wetted Materials: 300 Stainless Steel port and probe assembly, Teflon seal
Adjustable Range:+70F Dec. to +200F Inc. 21C Dec to 93C Inc
Elecrical Form: 11 amp, 1/4hp at 125 or 250 VAC: 5 amp resistive, 3 amp inductive at 28 VDC: .5 amp resistive at 125 VDC
System Pressure: 1500 PSIG Maximum
Electrial Connection: 1/2" NPT male conduit connection with PVC insulated 18 AWG, 18" Long Leads

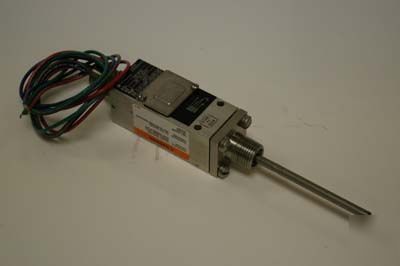

Probe is 3 1/2" from bottom of threads to tip of probe
