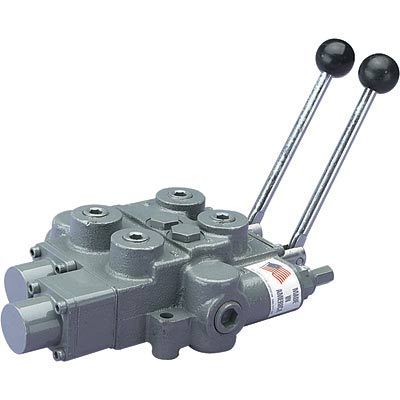

Prince two-spool control valve, model# RD522GCGA5A4B1
Prince Two-Spool Control Valve, Model# RD522GCGA5A4B1
Two spool to 25 GPM. With one standard 4-way port and one float. 3/4in. inlet and outlet ports; 1/2in. working ports. Valve will accept power beyond conversion plug. Internal load check. Relief pressure set at 2000 PSI; adjustable from 1500 PSI to 3000 PSI. Load check for each valve. U.S.A. Max. Flow (GPM): 25, Inlet Port (in.): 3/4, Outlet Port (in.): 3/4, Working Port (in.): 1/2, Max. PSI: 3,000, Directional Control: 4 way, 1 float, Spool (qty.): 2, Adjustable Release Pressure PSI: 1,500 - 3,000
