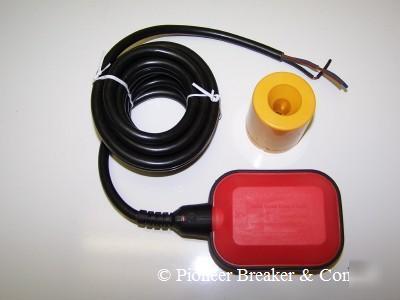

New 5 float switch square black 1NC 1NO fl-s-bk-4
Body - polypropylene, Cable - PVC or Neoprene available.
Contact rating: 15 amps@ 125/250 VAC 50/60 Hz
Electrical Life@ maximum load: 100,000 operations
Mechanical Life: 10,000,000 operations
Insulation Resistance: 100 Mohm
Minimum fluid specific gravity: 0.72
Operating temperature range: 32 to 122 deg F (0 to 50 deg C)
Storage temperature range: -4 to 176 deg F (-20 to 80 deg C)
Electromechanical level regulator
The level regulator is a float switch which allows electrical equipment to start and stop automatically (usually pumps, but also electric control valves, alarms, etc.) when a prefixed level has been reached. The most essential characteristic of this product is its high reliability and its shape which has no edges, for which it is particularly suitable for sewage water.
Also of great interest is the fact that it is made with a double liquid proof chamber which assures the maximum reliability of the inside mechanism.
The minimum working distance between the level regulator and the fixing point is 20 cm.
