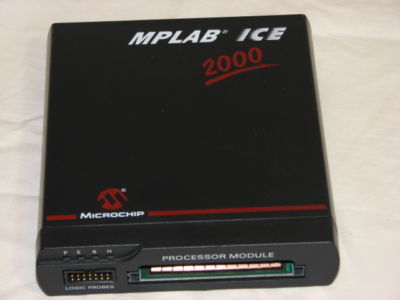

Microchip mplab ice 2000 in circuit emulator
full-featured emulator system providing full speed (up to 25 MHz) emulation
MPLAB ICE 2000 is a full-featured emulator system providing full speed (up to 25 MHz) emulation, low voltage operation, 32K by 128-bit trace, and up to 65,535 breakpoints. It is small, portable and lightweight. Interchangeable processor modules allow the system to be easily configured to emulate different processors. Complex triggering provides sophisticated trace analysis and precision breakpoints. The trace analyzer captures real-time execution addresses, opcodes and read/writes of external data. It also traces all file register RAM usage showing internal addresses and data values, as well as all accesses to special function registers, including I/O, timers and peripherals. Triggers and breakpoints can be set on single events, multiple events and sequences of events. The MPLAB ICE 2000 analyzer is fully transparent and does not require halting the processor to view the trace.
* CD-ROM (Click here to download latest MPLAB_IDE_8_40 at microchip website)
