K.o. lee B6062H "dakota series" tool & cutter grinder,
K.O. Lee B6062H "DAKOTA SERIES" TOOL & CUTTER GRINDER,
K.O. Lee B6062H "DAKOTA SERIES" TOOL & CUTTER GRINDER, HYD. TABLE, TILTING WHEELHEAD,
MODEL: B6062H S/N: 16550-FE NEW: 1975
SWING OVER TABLE ........................... 12-1/4"
TABLE WORKING SURFACE .............. 5-1/4" X 37-1/4"
FAST ....................................... 2-13/16"
SLOW .......................................... 9/16"
CROSS FEED ....................................... 8"
FEED PER REV. OF HANDWHEEL (.001" GRAD.) ,,... 0.100"
VERTICAL MOVEMENT OF COLUMN ................. 10-1/2"
FEED PER REV. OF HANDWHEEL (.001" GRAD.)...... 0.050"
COLUMN DIAMETER .................................. 6"
SHAFT TO TABLE ......................5-3/8" / 15-1/4"
MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE
OF STRAIGHT WHEEL; DOVETAIL SLIDE NOT EXTENDED,
SPINDLE 90 DEG. TO TABLE .................... 6-3/8"
OF STRAIGHT WHEEL; DOVETAIL SLIDE EXTENDED,
SPINDLE 90 DEGREES TO TABLE ................ 11-1/2"
TABLE SWIVELS (CALIBRATION: 3" PER FT.,
15 DEG. EITHER SIDE OF CENTER) .......... 225 DEGREES
WHEEL HEAD SWIVEL ........................ 360 DEGREES
MAXIMUM I.D. DEPTH, HOLE SIZE 9/32" TO 2" ..... 3-1/2"
MAXIMUM CROSS FEED SURFACE GRINDING W/8" WHEEL..... 5"
(HEAVY DUTY WHEELHEAD) .............. 2840 TO 5330 RPM
APPROXIMATE MACHINE WEIGHT ................. 1,300 LBS
FRONT & REAR HANDWHEELS FOR TABLE TRAVERSE
"DAKOTA" HEAVY DUTY #B6055HD UNIVERSAL GRINDING
- SWIVELLING & TILTING (22 DEG. EITHER SIDE
- 1 HP MOTOR WIRED FOR 3/60/460 VOLT OPERATION
- 3-1/2" TO 8" DIAMETER WHEELS
WE HAVE AVAILABLE FOR PURCHASE FOR THIS MACHINE A K.O. LEE
MOTORIZED WORKHEAD & A SET OF K.O. LEE TAILSTOCKS, ALL
FOR THE "6000" SERIES MACHINE. THESE ITEMS ARE AVAILABLE

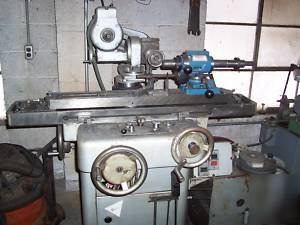

ALSO AVAILABLE IS THE K.O. LEE MODEL B982-5C AIR BEARING
FIXTURE SHOWN ON THE MACHINE, FOR AN ADDITIONAL $1,500.
