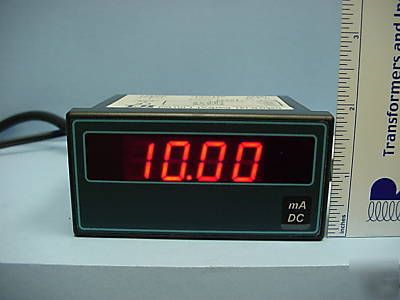

Icl digital meter 2 20 2000 dc milliamps amps 1/8 din
DC Amp Meter 0- 2mA / 0-20mA / 0-200mA / 0-2 A
Model DCI-J-A-7 (New with Box, Manual & Mounting Hardware)
0-2/20/200/2000 MilliAmps DC (Internal Jumper Selectable)
3 1/2 digits 14mm high. Legible up to 7 metres away.
Fixed 0.5 Second basic filtering.
Zero and Span potentiometers. Decimal point position jumper switch.
+/-0.25% of range +/-1 count for inputs over 1% of range
96mm wide x 48mm high. 13mm forward.
92mm wide x 45mm high. +1mm, -0mm
93mm including connectors + cable.
* Please let me know if you want this setup for 2 , 200, 200 or 2000 mADC
