Jds uniphase sc 2X12 e configuration fiber optic switch

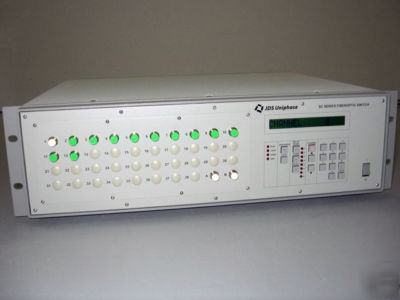

JDS Uniphase SC 2x12 E Configuration Fiber Optic Switch
* Model Number: SC2E10121+27AF000FP
* Switch Type: E configuration, The MxN configuration aligns any input with any output, while other inputs are aligned to adjacent outputs.
* Wavelength Range: 1270 to 1670 nm
* Connector Type: FC\\PC (connectors on front)
* Insertion Loss: 0.5 dB (Typical), 1.0 dB (Maximum)
* Return loss SM standard/analog: => 65 dB, 60 dB
* Insertion loss stability: +/- 0.03 dB, +/- 0.05 dB
* Sequential switching: +/- 0.005 dB, +/- 0.01 dB
* Random switching: +/- 0.02 dB, +/- 0.04 dB
