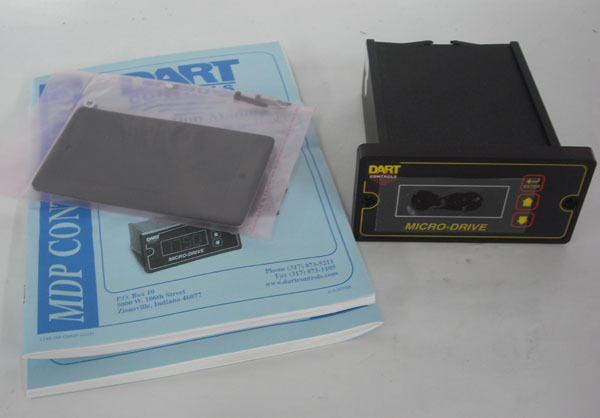

Dart controls MD10P variable dc speed control 90/180VDC
Dart Controls MD10P Variable DC Speed Control 90/180VDC
Dart Controls MD10P Variable DC Speed Control 90/180 VDC
* 90/180VDC Field Programmable Closed Loop Control
* Designed for use with 90/180V PMDC motors and gearmotors.
* Microprocessor-based with nonvolatile memory. Easy front-panel programming with lockout capability. Set speed can be displayed in RPM, FPM, GPM, process time, or other engineering units. Digital closed loop accuracy Plus or Minus1/2 RPM. 1/2" programmable digital display features adjustable intensity and shows any time or rate base units. Operates in master or follower modes. Sturdy aluminum construction using 1/8 DIN mount. Screw-type terminal strip for easy installation. UL and C-UL Recognized.
* Supports any AC voltage from 85 to 265VAC, 60/50 Hz
* Power Rating @ Lower Voltage 1/2 HP, @ Higher Voltage 1/8-1 HP
* Input Voltage 85 to 265 VAC 60/50 Hz
* Field Programmable Front Panel, Microprocessor Based with Nonvolatile Memory,
* Digital Closed Loop Accuracy with Pulse Generator +/- 1/2 RPM
* Digital Display 1/2 Inch LED
* Height 1.66 Inches, Depth 4.13 Inches, Width 3.62 Inches
