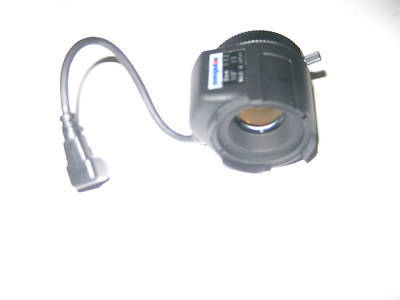

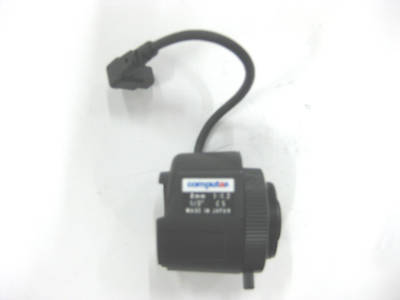

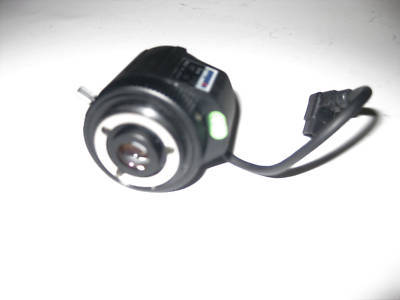

Computar 8MM 1:1.2 1/3†auto iris TG0812FSC
Computar 8mm 1:1.2 1/3 Auto Iris TG0812FSC
Computar Auto Iris 8mm 1:1.2 1/3 C Mount Lens TG0812FSC DC Type
Computar Model TG0812FCS is a 1/3" format, DC auto iris CS-Mount 8.0mm lens with an aperture range of 1.2-16C. Used on a 1/3" camera, the Computar TG0812FCS provides a telephoto horizontal view of 34.7 degrees. The Computar TG0812FCS Locking set screw on focus ring.
This Computar auto iris lenses are available with either a DC or Video type iris output. They are recommended for use outdoors or in areas with changing light conditions.
DC type (FCS and FCS-L series) lenses come prewired with a 4 pin connector which is compatible with most current CCTV cameras. They are available with either a short (9cm) cable or a long (31cm) cable. Cameras with a side connector will usually accept a short cable while those with a connector on the back panel need a long cable.
Video Type (AFCS and APC series) lenses include ALC and Level adjustments on the lens barrel. They contain amplifier circuitry to convert the video signal from the camera into iris motor control. They have a long (31cm) cable and are sold without a connector, although a connector can be installed upon request. In this case, the camera brand and model are required.
