Attic fan - 30" - 1/3 hp - 115V - 5,900 cfm
30" - 1/3 Hp - 115 Volt - 5,900 CFM - Belt Driven - Cools 800 to 1,200 Square Feet - Automatic Belt Tensioning
Model VIRCC2422 - 24" - 3,700 CFM for up to 800 Square Feet
Model VIRCC3022 - 30" - 5,900 CFM for 800 to 1,200 Square Feet
Model VIRCC3023 - 30" - 6,900 CFM for 900 to 1,500 Square Feet
Model VIRCC3622 - 36" - 7,800 CFM for 1,200 to 1,800 Square Feet
Model VIRCC3623 - 36" - 10,600 CFM for 1,500 to 2,500 Square Feet
Model VIRCC4223 - 42" - 12,000 CFM for 2,200 to 3,200 Square Feet
Model VIRCC4823 - 48" - 13,800 CFM for 2,500 to 4,000 Square Feet

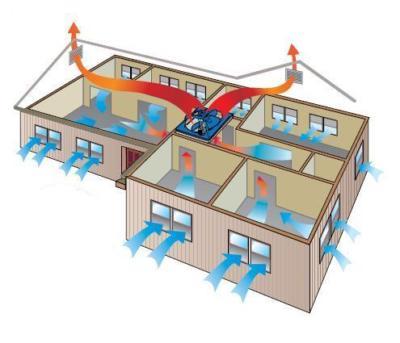

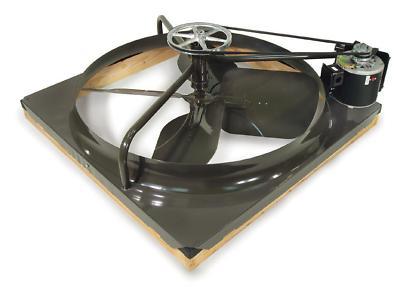

* Heavy Duty 30" Attic / Whole House Fan
* Service-free and quiet as a whisper, these fans come with our unique Automatic Belt Tensioning that extends motor life and eliminates the need for manual belt adjustments
* Belt Tensioning: Automatic
* Fan Blades: Deep pitch four-wing blade for maximum air movement
* Framing Included: 1" x 4" wood frame - ready to install
* Dampering: Rubber damper between fan and wood frame provides whisper quiet operation
* Optional Item: Model VIRAS11 - Shutter - Standard Ceiling Shutter (please inquire)
* Optional Item: Model VIRCSS30 - Shutter - No-Cut Joist Shutter (please inquire)
