Advance inverted tissue culture microscope + 5MP camera

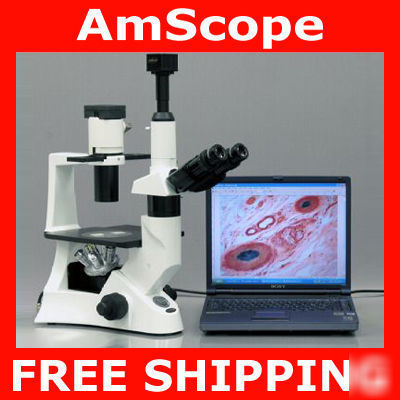

ADVANCE INVERTED TISSUE CULTURE MICROSCOPE + 5MP CAMERA
Brand Name: AmScope Model No: IN420T-5M Retail Value: $15,000
* Perfect for clinics, vets, doctors and researchers to view living biological tissue cultures and examine specimens in liquid.
* CSIS infinity chromatic correction optical system.
* Gemel type of trinocular head, 45 inclined.
* High eye-point PLAN eyepieces.
* PLAN and INFINITY long working distance achromatic objectives: LWD PL4X, 10X, 20X, 40X & 60X.
* PLAN and INFINITY long working distance phase contrast objectives: LWD PH10X, 20X & 40X.
* Fully coated optical system with high resolution.
* Adopted 90-240V halogen illumination system.
* Upright photo port for photographic/video capability.
* Movable N.A.0.3 condenser.
* Above-stage condenser with moving and focusing knobs and swing-out filters.
* Stage moving-stop mechanism to protect slides and objectives.
* Diopter adjustment on ocular.
* Top light house with filters.
* Spare bulb, fuse and dust cover.
* Extra large 3-D double layer mechanical stage with stain resistant finish.
* Low position coaxial stage movement control knobs.
* Coaxial coarse & fine focusing with CA knob tension control.
* Built-in halogen illumination system with variable brightness.
* Dual side mounted focusing controls.
* Rugged cast alloy frame and stand with stain resistant enamel finish.
* Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
* Head: trinocular anti-mould viewing head inclined at 30 degree
* Eyepieces: PLAN WF10X (18mm Field of View) and WF16X (11mm)
* Objectives: 4X (0.1 NA), 10X (0.25 NA), 25X (0.4 NA), 40X (0.60 NA)
* Stage Dimensions: 7-1/2"x 5-11/16" (190x145mm)
* Stage Traveling Range: 3-0"x2-0" (75x50mm)
* Filters: 1-11/16", yellow and green
* Illumination: 50W halogen bulb
* Illumination Elevating Range: 25/32" (20mm)
* Power Supply: 110V/60Hz (220V/50Hz adapter available), CE certified
* Packing Dimensions: 17"x10"x21"
* One Microscope Body with Frame, Base and Illumination System
* Four High Quality DIN Objectives, 4X, 10X, 25X & 40X
* One Pair of PLAN WF10X Eyepieces
* One Pair of Widefield P16X Eyepieces
* One 5.0MP Microscope Digital Camera with Software and Driver
