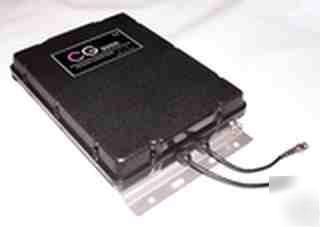

Cg-3000 (mfj-926) 200W automatic antenna tuner/coupler
CG-3000 Automatic Antenna Tunner
It is OEM product of MFJ-926 in North Amercia carried by MFJ:
http:// /Product.php?productid=MFJ-926
Covers all HAM bands from 1.8-30 Mhz continuously just using a 8 meters or longer wire antenna.
200W PEP supports most amateur stations.
Easy and quick to tune. 200 memory channels
Solid and robust waterproof housing.
Compact size and light weight.
It can fit long wire, mobile whip, vertical antenna, dipol antenna (without balun), etc.
A cheap and easy solution for you to construct a full band antenna.
1.8 - 30 Mhz with long wire antenna from 8 meters
Approx. 2 seconds (first time tuning)Less than 1 second (return to memory frequency)
310mm X 240mm X 72mm (L - W - H)
CG-3000 is designed with Pi matching network. It provides more wide tuning range and covers whole HF band. Using 8 solid inductors, the total inductance ranges from 0 to 63 uH. They can give 255 combinations with a resolution of 0.25 uH. 5 capacitors are used at the input side, the total capacitance ranges from 0 to 6300 pF with 31 combinations. Other 5 capacitors are used at the output side, the total capacitance ranges from 0 to 755 pF with 31 combinations. So totally they give 245055 tuning combinations.
For more details,please read: CG-3000 user manual
