Nxp LPC2103 development board arm ARM7 microcontroller

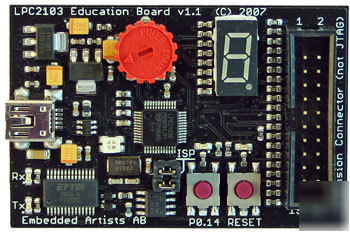

Embedded Artists NXP LPC2103 Education Development Board ARM ARM7 Philips Microcontroller Purchased from Embedded Artists, but now surplus to requirements. These boards normally retail for 35 EUR, 22 EUR delivery, 14.25 EUR tax (25% Sweden), TOTAL 71.25 EUR ( 63.24 converted at ).
The development board comes complete with everything that you could need to start ARM development. Has various Inputs/Outputs to allow you to start interacting with the microcontroller plus lots of IO pins to add further functionality. Board comes complete with USB Cable (power and data), Resource DVD registration code for Embedded Artists and cable to interconnect more than one board. Start learning more about ARM7 processors in general and the LPC2103 microcontroler in particular using Embedded Artists' LPC2103 Education Board. OverviewEmbedded Artists' LPC2103 Education Board is the smallest of our education boards and a good start to get to know the NXP LPC2xxx family in general and the LPC2103 in particular.
The board contains interesting on-board peripherals that are useful for experiments. The experiments can be further expanded via the expansion connector.
The board can be used for education purposes as well as for experiment and prototype projects. Specification
NXP's ARM7TDMI LPC2103 microcontroller
USB-to-serial bridge interface on UART #0
Analog input (via trimmer potentiometer)
RGB-LED, each color can be controlled via PWM signal
2 LEDs (on P0.14 and Reset signal)
On-board low-dropout voltage and reset generation
+3.3V available for external circuits, up to 300 mA
mini-B USB, USB-to-serial bridge interface
Simple and automatic program download (ISP) via USB-serial channel. Circuit that automatically controls the bootloader from USB-serial channel
Four layer PCB (FR-4 material) for best noise immunity
Delivered with 20 pos flat cable for explansion connector
ARM7TDMI-S core with speed up to 70 MHz
PWM features through output match on all timers
More Informationhttp:// /products/education/edu_2103.php
